Product Information

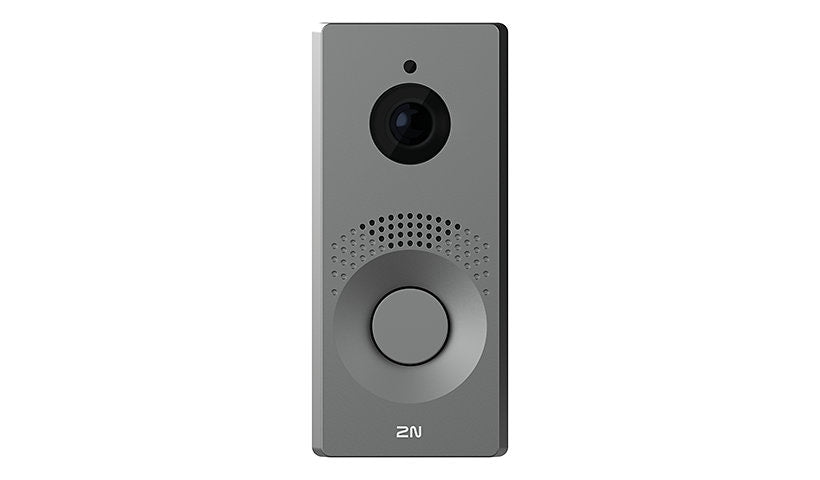

The 2N IP One is an outdoor aluminum IP intercom main unit with one button and a camera streaming up to 1920 x 1440 at 30 fps with WDR, IR light and Zipstream. It offers full duplex audio with automatic volume, ONVIF Profile S, H.264 and MJPEG, a tamper switch and PoE or 12 V DC power. Gray. It is an intercom, not a card reader.
Key Features
- 1 button IP intercom
- 1920 x 1440 at 30 fps
- WDR, IR light, Zipstream
- Full duplex audio
- PoE or 12 V DC, ONVIF S
- Aluminum, outdoor, gray
Product Information
Image Color Disclaimer: The displayed product image may be a different color
Brand: 2N
Product Line: 2N
Model: IP One
Product Type: IP intercom station
Packaged Quantity: 1
Color: Gray
Color Category: Gray
Network and Communication
Features #2: 30 fps, Automatic volume adjustment, Full duplex support, H.264 streaming video, Infrared light, MJPEG streaming video, WDR technology, Zipstream technology
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet
Wired Protocol: 10/100 Ethernet
Features: Auto-uplink (auto MDI/MDI-X), HTTP support, ONVIF Profile S, Power over Ethernet (PoE), RTP support, RTSP support, SRTP support
Features: 30 fps, Automatic volume adjustment, Full duplex support, H.264 streaming video, Infrared light, MJPEG streaming video, WDR technology, Zipstream technology
Connectivity
Interfaces: LAN/power, Tamper switch
Power Over Ethernet (PoE): PoE
Power
Power Source: PoE
Required Voltage: DC 12 volt
Power Consumption Operational: 12.95 watt
Technical Information
Environment: Outdoor
Buttons Quantity: 1
Image Sensor Size: 1/2.7"
Image Sensor Type: CMOS
Rated Current: 600 milliampere
Touchscreen: No
Integrated Components: Camera, Microphone, Speaker
Max Video Resolution: 1920 x 1440
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Physical Characteristics
Materials: Aluminum
Dimensions and Weight
Height: 6.8 inch
Width: 3.1 inch
Depth: 0.4 inch
Weight: 12.52 ounce
Certifications and Listing
Compliant Standards: G.711, G.722, G.729, IEEE 802.3af, IK08, IP66
