Product Information

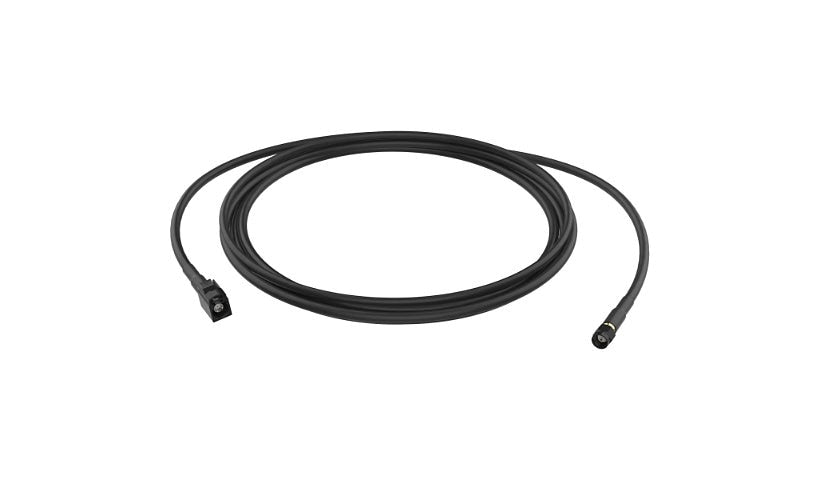

The AXIS 02267-001 is a black 66 ft plenum rated cable with SMA and FAKRA connectors, 50 ohm, tested to 3 GHz, with a 32 mm bend radius, linking F series sensor units to main units. Listed for AXIS F2105-RE, F2115-R, F2135-RE, F4105-LRE, F7225-RE, F9111 and F9114-B. Backed by a 3 year limited warranty.
Key Features
- 66 ft cable
- SMA to FAKRA
- Plenum rated
- Tested to 3 GHz
- 32 mm bend radius
- 3 year limited warranty
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Compatibility Specs: AXIS F2105-RE, F2115-R, F2135-RE, F4105-LRE, F7225-RE, F9111 Main Unit, F9114-B
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Network Cable Type: Network cable
Features: Bending radius 32mm
Connectivity
Left Connector Type: SMA
Left Connector Quantity: 1
Right Connector Type: FAKRA connector
Right Connector Quantity: 1
Technical Information
Tested Frequency (up to): 3 GHZ
Touchscreen: No
Impedance: 50 ohm
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 185 degree Fahrenheit
Physical Characteristics
Diameter: 0.2 inch
Dimensions and Weight
Length: 66 ft
Weight: 22.57 ounce
Included Items
Cable Key Features: Indoor, Plenum, Rugged
Certifications and Listing
Compliant Standards: CMP, E329281, UL
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
