Product Information

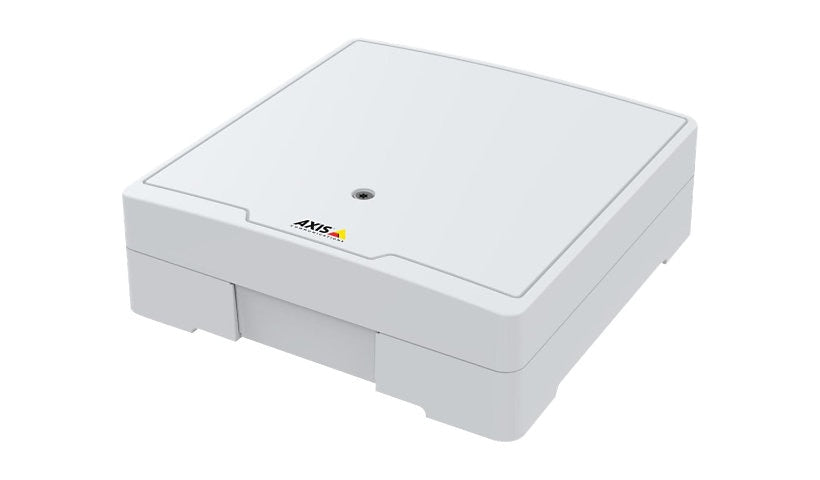

The Axis A1610 is an edge based network door controller that handles one or two doors with up to four OSDP readers and up to 250,000 credentials and events. It has 14 I/O, a relay and RS-485/Wiegand, is PoE+ powered and uses Axis Edge Vault with tamper detection. It carries a 5 year warranty.
Key Features
- 1 to 2 doors, up to 4 OSDP readers
- 250,000 credentials and events
- 14 x I/O, relay, RS-485/Wiegand
- Fast Ethernet, PoE+
- Axis Edge Vault, tamper detection
- 5 year warranty
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: Axis
Model: A1610
Product Type: Door controller
Packaged Quantity: 1
Color: NCS S 1002-B, White
Color Category: White
Country: Argentina, Australia, Brazil, China, European Union, India, Japan, United Kingdom, United States
Network and Communication
Features #2: 1-2 doors support, Up to 250000 credentials, Up to 250000 events, Up to 4 OSDP readers
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, RS-485, Wiegand
Wired Protocol: Serial RS-485/Fast Ethernet/Wiegand
Authentication Method: Secure Shell (SSH)
Encryption: EAP-TLS
Features: Axis device ID, Axis Edge Vault, Brute force delay protection, Centralized certificate management, DDNS (Dynamic Domain Name Service), DHCP support, DiffServ support, Digest authentication, DNS support, HTTP support, HTTPS support, IGMP support, IP address filtering, IPv4 support, IPv6 support, mDNS, MQTT support, NTP support, Open Supervised Device Protocol (OSDP), Password protection, RTCP support, RTP support, RTSP support, Secure Boot, Secure keystore, Signed firmware, SMTP support, SNMP support, SOCKS support, Syslog support, TCP support, UDP support, User access log
Features: 1-2 doors support, Up to 250000 credentials, Up to 250000 events, Up to 4 OSDP readers
Connectivity
Interfaces: 14 x input/output, LAN/power, Relay, Serial (RS-485)/Wiegand
Power Over Ethernet (PoE): PoE+
Power
Power Source: PoE
Memory and Processor
RAM Installed: 512 megabyte
Flash Memory Installed: 2 GB
Technical Information
Functions: Tamper detection
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 20 - 85% RH (non-condensing)
Physical Characteristics
Materials: Aluminum
Dimensions and Weight
Height: 2.4 inch
Width: 6.9 inch
Depth: 6.9 inch
Weight: 2.65 lbs
Included Items
Included Accessories: Cable ties, Grounding kit
Certifications and Listing
Compliant Standards: AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, EAL 6+, EN 50130-4, EN 50581, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC/EN/UL 62368-1, IEEE 802.1x, IEEE 802.3at, KS C 9832 Class A, KS C 9835, PVC-free, UL 294, VCCI Class A
Warranty
Limited Warranty: 5 Year
