Product Information

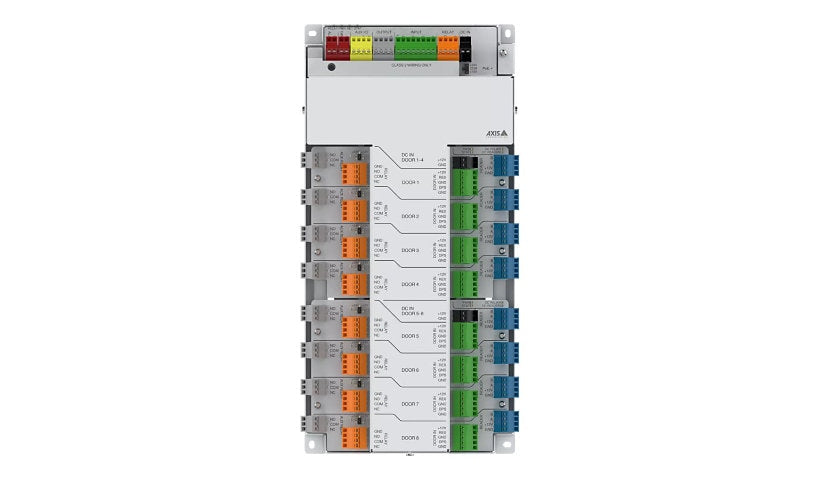

The Axis A1810-B is a network door controller that manages up to eight doors and up to 16 OSDP readers, storing up to 250,000 credentials and events. It has 16 I/O, two relays and eight RS-485/Wiegand ports, is PoE+ powered and uses Axis Edge Vault with TLS 1.3 and tamper detection, in a white aluminum housing.
Key Features
- Up to 8 doors, 16 OSDP readers
- 250,000 credentials and events
- 16 x I/O, 2 x relay, 8 x RS-485/Wiegand
- Gigabit Ethernet, PoE+
- Axis Edge Vault, TLS 1.3, tamper detection
- Aluminum, white, grounding kit included
Product Information
Brand: Axis
Product Line: Axis
Model: A1810-B
Product Type: Door controller
Packaged Quantity: 1
Color: NCS S 1002-B, White
Color Category: White
Network and Communication
Features #2: Up to 16 OSDP readers, Up to 250000 credentials, Up to 250000 events, Up to 8 doors
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-485, Wiegand
Wired Protocol: Serial RS-485/Gigabit Ethernet/Wiegand
Authentication Method: Secure Shell (SSH)
Encryption: EAP-TLS, TLS 1.2, TLS 1.3
Features: Axis Edge Vault, Brute force delay protection, DDNS (Dynamic Domain Name Service), DHCP support, DiffServ support, Digest authentication, DNS support, HTTP support, HTTPS support, IGMP support, IP address filtering, IPv4 support, IPv6 support, mDNS, MQTT support, NTP support, Open Supervised Device Protocol (OSDP), Password protection, RTCP support, RTP support, RTSP support, Secure Boot, Signed firmware, SMTP support, SNMP support, SOCKS support, Syslog support, TCP support, UDP support
Features: Up to 16 OSDP readers, Up to 250000 credentials, Up to 250000 events, Up to 8 doors
Connectivity
Interfaces: 16 x input/output, 2 x relay, 8 x serial (RS-485)/Wiegand, LAN/power
Power Over Ethernet (PoE): PoE+
Power
Power Source: PoE
Memory and Processor
RAM Installed: 512 megabyte
Flash Memory Installed: 2 GB
Technical Information
Functions: Tamper detection
Touchscreen: No
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 85% RH (non-condensing)
Physical Characteristics
Materials: Aluminum
Dimensions and Weight
Height: 12.9 inch
Width: 6.5 inch
Depth: 1.1 inch
Weight: 2.93 lbs
Included Items
Included Accessories: Grounding kit, Splicing connectors
Certifications and Listing
Compliant Standards: BFR-free, CFR free, EAC, EAL 6+, EN 50130-4, EN 55032 Class B, EN 55035, EN 61000-3-2, EN 61000-3-3, IEC/EN 60950-1, IEC/EN/UL 62368-1, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3at, KN32 Class B, KN35, NEMA TS-2 (2.2.7-2.2.9), PVC-free, X.509
Not sure this item fits your setup? Send us the model of your current access control system, reader or host device and how you plan to use it, and the DatorPro team will help you confirm compatibility before you order.
