Product Information

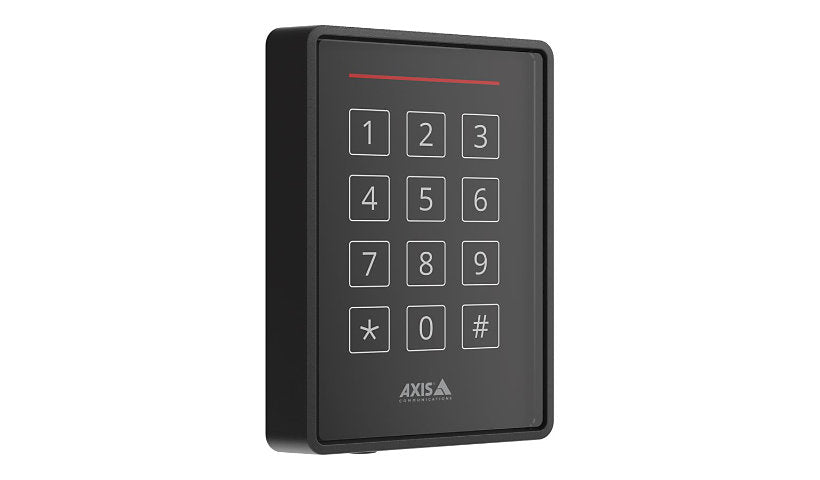

The AXIS A4120-E is a 13.56 MHz RFID reader with a touch keypad made to match Axis network door controllers and credentials. It reads MIFARE Classic, Plus and DESFire EV1/EV2, uses an EAL6+ secure element and signed firmware, connects by OSDP over RS-485 on 12 V DC and is IP66 and IK07 rated for indoor or outdoor use. 5 year limited warranty.
Key Features
- RFID reader with touch keypad
- MIFARE Classic, Plus, DESFire
- EAL6+ secure element
- OSDP over RS-485, 12 V DC
- IP66, IK07, indoor or outdoor
- 5 year limited warranty
Product Information
Brand: Axis
Product Line: Axis
Model: A4120-E
Product Type: RFID proximity reader / keypad
Packaged Quantity: 1
Color: Black, NCS S 9000-N
Color Category: Black
Network and Communication
Features #2: 13.56 MHz card technology, Impact protection, Scratch protection
Connectivity Technology: Wired
Data Link Protocols: RS-485
Wired Protocol: Serial RS-485
Features: Open Supervised Device Protocol (OSDP), Signed firmware
Features: 13.56 MHz card technology, Impact protection, Scratch protection
Connectivity
Interfaces: Serial (RS-485)
Power
Power Source: Hardwired
Required Voltage: DC 12 volt
Technical Information
Environment: Indoor, Outdoor
Card Technology: HID MIFARE Classic, HID MIFARE DESFire EV1, HID MIFARE DESFire EV2, HID MIFARE Plus
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Materials: Plastic
Dimensions and Weight
Height: 4.8 inch
Width: 3.3 inch
Depth: 1.1 inch
Weight: 9.1 ounce
Certifications and Listing
Compliant Standards: CAN/CSA C22.2 No. 60950-22, CAN/CSA-C22.2 No. 62368-1, EAL 6+, EN 300.330, EN 301 489-1, EN 301 489-3, EN 50364, EN 55032 Class B, EN 60950-22, EN 61000-6-1, EN 61000-6-3, EN 62311, EN 62368-1, FCC Part 15 Subpart B Class B, FCC Part 15 Subpart C, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 60950-22, IEC 62368-1, IEC/EN 60529 IP66, IEC/EN 62262 IK07, IK07, IP66, ISO 14443 type A, ISO 14443 type B, MIFARE, NEMA Type 4X, UL 60950-22, UL 62368-1
Warranty
Limited Warranty: 5 Year
Not sure this item fits your setup? Send us the model of your current access control system, reader or host device and how you plan to use it, and the DatorPro team will help you confirm compatibility before you order.
