Product Information

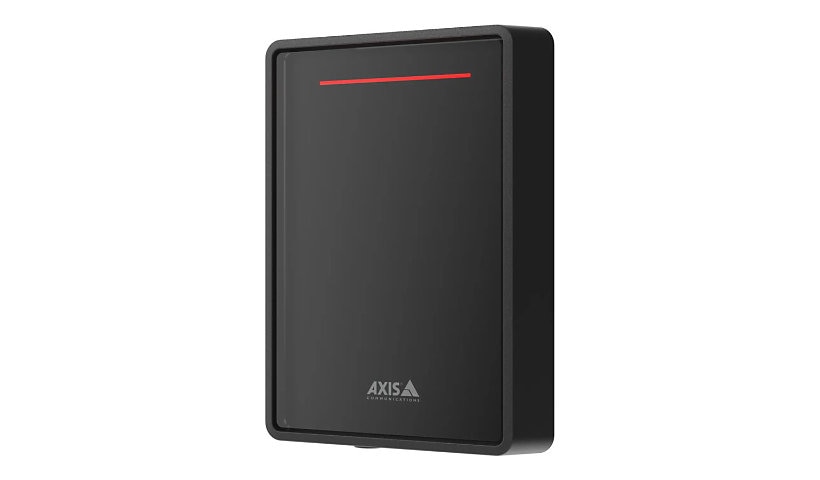

The AXIS A4130-E is a 13.56 MHz RFID reader for indoor or outdoor doors, reading MIFARE Classic, Plus and DESFire EV1 to EV3. It connects by OSDP on 12 V DC, works from -40 to 65 C and has a tamper switch, alarm mode, RGB LED and impact and scratch protection. PVC free. Black. 5 year limited warranty.
Key Features
- 13.56 MHz RFID reader
- MIFARE Classic, Plus, DESFire
- OSDP, 12 V DC
- -40 to 65 C, indoor or outdoor
- Tamper switch, RGB LED
- 5 year limited warranty
Product Information
Brand: Axis
Product Line: Axis
Model: A4130-E Reader
Product Type: RFID proximity reader
Packaged Quantity: 1
Color: Black, NCS S 9000-N
Color Category: Black
Country: Australia, Europe, United Kingdom, United States
Network and Communication
Features #2: Alarm mode, Impact protection, PVC-free, RGB LED indicator, Scratch protection, Tamper switch
Connectivity Technology: Wired
Features: Open Supervised Device Protocol (OSDP)
Features: Alarm mode, Impact protection, PVC-free, RGB LED indicator, Scratch protection, Tamper switch
Connectivity
Interfaces: Serial
Power
Required Voltage: DC 12 volt
Technical Information
Environment: Indoor, Outdoor
Card Technology: HID MIFARE Classic, HID MIFARE DESFire EV1, HID MIFARE DESFire EV2, HID MIFARE DESFire EV3, HID MIFARE Plus
Integrated Sensors: 13.56 MHz RFID Proximity Card Scanner
Touchscreen: No
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Materials: Plastic
Dimensions and Weight
Height: 4.8 inch
Width: 3.3 inch
Depth: 1.1 inch
Weight: 9.1 ounce
Certifications and Listing
Compliant Standards: 2011/65/EU, 2015/863, AS/NZ CISPR 32 Class B, CAN/CSA-C22.2 No. 60950-22, CAN/CSA-C22.2 No. 62368-1, CISPR 32 Class B, EAL 6+, EN 18031-1: 2024, EN 61000-6-1, EN 61000-6-3, EN/IEC 63000:2018, FCC Part 15 Subpart B Class B, FIPS 140-3 Level 3, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK07, IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IK07, IP66, RCM, REACH, RoHS, UL 294, UL 60950-22, UL 62368-1
Warranty
Limited Warranty: 5 Year
Not sure this item fits your setup? Send us the model of your current access control system, reader or host device and how you plan to use it, and the DatorPro team will help you confirm compatibility before you order.
