Product Information

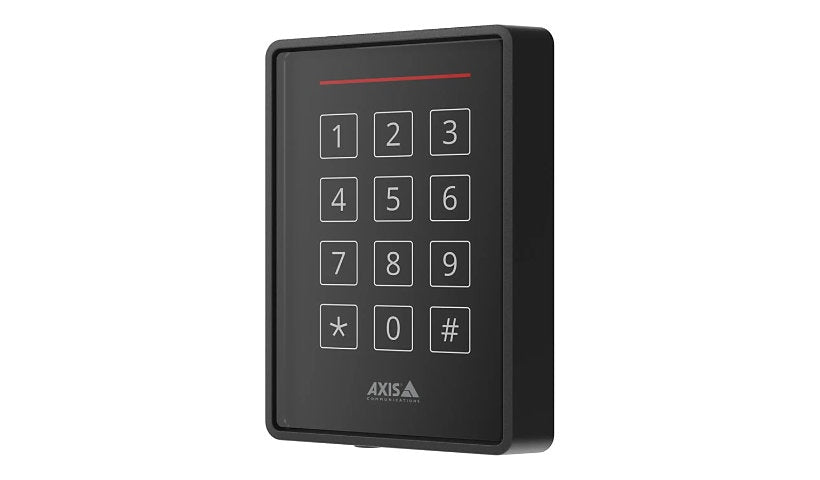

The Axis A4131-E is an indoor/outdoor 13.56 MHz RFID reader with keypad that reads MIFARE Classic, Plus and DESFire EV1/EV2/EV3 cards over OSDP. It is impact and scratch protected, PVC free, has an RGB LED, alarm mode and tamper switch, and runs on 12 V DC from -40 to 65 C. It carries a 5 year warranty.
Key Features
- 13.56 MHz RFID with keypad
- MIFARE Classic, Plus, DESFire EV1/EV2/EV3
- OSDP, 12 V DC
- Impact and scratch protection, PVC free
- Indoor/outdoor, -40 to 65 C
- 5 year warranty
Product Information
Brand: Axis
Product Line: Axis
Model: A4131-E Reader
Product Type: RFID proximity reader / keypad
Packaged Quantity: 1
Color: Black, NCS S 9000-N
Color Category: Black
Country: Australia, Europe, United Kingdom, United States
Network and Communication
Features #2: Alarm mode, Impact protection, PVC-free, RGB LED indicator, Scratch protection, Tamper switch
Connectivity Technology: Wired
Features: Open Supervised Device Protocol (OSDP)
Features: Alarm mode, Impact protection, PVC-free, RGB LED indicator, Scratch protection, Tamper switch
Connectivity
Interfaces: Serial
Power
Required Voltage: DC 12 volt
Technical Information
Environment: Indoor, Outdoor
Card Technology: HID MIFARE Classic, HID MIFARE DESFire EV1, HID MIFARE DESFire EV2, HID MIFARE DESFire EV3, HID MIFARE Plus
Integrated Sensors: 13.56 MHz RFID Proximity Card Scanner
Touchscreen: No
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Materials: Plastic
Dimensions and Weight
Height: 4.8 inch
Width: 3.3 inch
Depth: 1.1 inch
Weight: 9.1 ounce
Certifications and Listing
Compliant Standards: 2011/65/EU, 2015/863, AS/NZ CISPR 32 Class B, CAN/CSA-C22.2 No. 60950-22, CAN/CSA-C22.2 No. 62368-1, CISPR 32 Class B, EAL 6+, EN 18031-1: 2024, EN 61000-6-1, EN 61000-6-3, EN/IEC 63000:2018, FCC Part 15 Subpart B Class B, FIPS 140-3 Level 3, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK07, IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IK07, IP66, RCM, REACH, RoHS, UL 294, UL 60950-22, UL 62368-1
Warranty
Limited Warranty: 5 Year
