Product Information

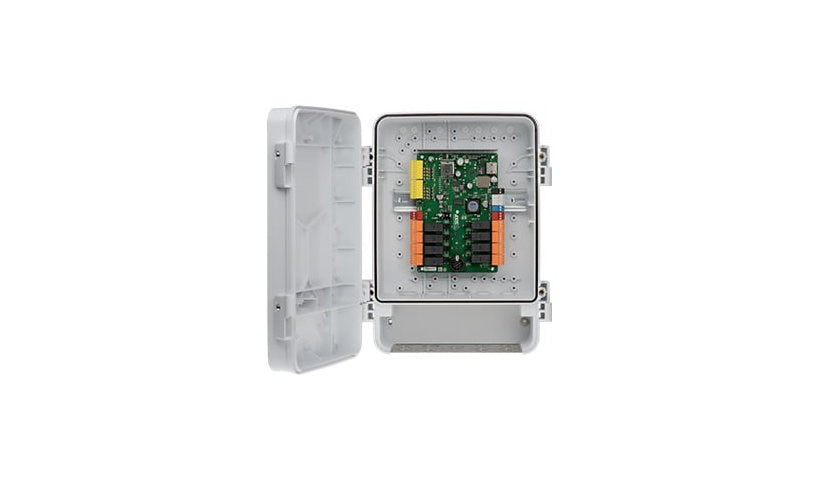

The AXIS A9188-VE (0831-001) is a network I/O relay module with 8 configurable I/Os and 8 relay outputs, PoE+ powered, bundled with the AXIS T98A15-VE surveillance cabinet so it is outdoor ready, vandal resistant and UL294 approved. Backed by a 3 year limited warranty. It is a control module, not a camera.
Key Features
- Network I/O relay
- 8 I/Os, 8 relays
- PoE+ powered
- T98A15-VE cabinet
- UL294 approved
- 3 year limited warranty
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: A9188-VE Network I/O Relay Module
Product Type: Expansion module
Packaged Quantity: 1
Color Category: Green
Network and Communication
Connectivity Technology: Wired
Network Standard: ARP, Bonjour, DDNS, DHCP, DNS, FTP, ICMP/IP, NTP, RTCP, RTP, SFTP, SMTP, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3
Features: ARP support, DHCP support, DiffServ support, E-mail notification, IP address filtering, IPv4 support, IPv6 support, PoE+, Quality of Service (QoS)
Connectivity
Interface Provided: 1 x 100Base-TX (PoE+) - RJ-45 (internal), 8 x digital input/output - terminal block (internal), 8 x relay output - terminal block (internal)
Memory and Processor
RAM Installed: 256 megabyte
Flash Memory Installed: 256 megabyte
Technical Information
Touchscreen: No
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 20 - 85% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Module
Included Items
Bundled With: AXIS T98A15-VE Surveillance Cabinet
Certifications and Listing
Compliant Standards #2: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, UPnP
Compliant Standards: AS/NZS CISPR 22 Class B, C-Tick Class B, EN 50130-4, EN 50581, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN55022 Class B, EN55024, FCC Part 15 Class B, ICES-003 Class B, IEC 60950-1, UL 2043, UL 294, VCCI Class B
Compliant Standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, UPnP
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
