Product Information

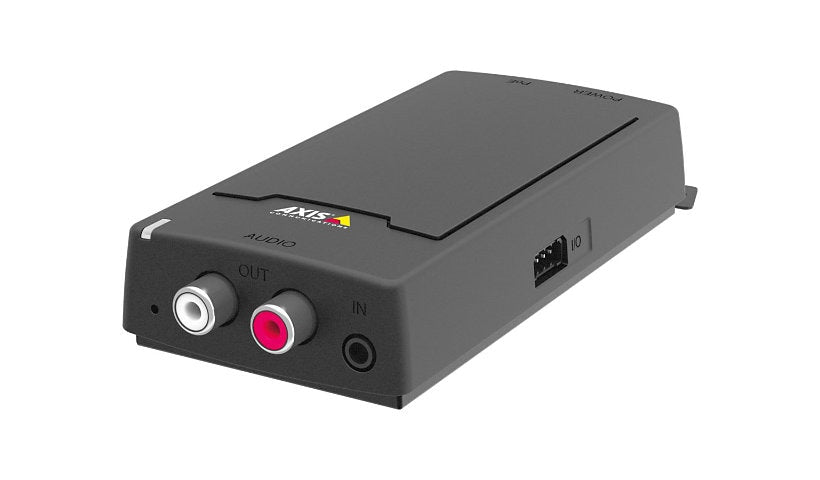

The AXIS C8110 (02370-001) is a network audio bridge that links analog audio equipment with network audio, with line in, RCA line out, a 4 pin digital I/O for buttons and relays and a microSDXC reader, powered by PoE Class 2. It runs AXIS Audio Manager Edge and includes an AXIS Camera Station license key. Black. Backed by a 5 year limited warranty. It is an audio device, not a camera.
Key Features
- Analog to IP audio
- Line in, RCA out
- I/O for buttons, relays
- PoE powered
- Audio Manager Edge
- 5 year limited warranty
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: C8110
Product Type: Audio extender
Packaged Quantity: 1
Color: Black, NCS S 9000-N
Color Category: Black
Country: Argentina, Australia, Brazil, China, Europe, Japan, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Remote Management: HTTP, HTTPS, SFTP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSH
Features: Centralized certificate management, Digest authentication, HTTPS encryption, IP address filtering, IPv4 support, IPv6 support, Management Information Base (MIB) II, Password protection, Power over Ethernet (PoE), User access log
Software Type: AXIS Audio Manager Edge
Connectivity
Interface Provided: 1 x audio line-in - mini jack female, 1 x audio line-out - RCA female x 2, 1 x Digital I/O - 4 pin terminal block, 1 x Ethernet 10Base-T/100Base-TX (PoE) - RJ-45 female
Power Over Ethernet (PoE): PoE Class 2
Power
Device Type: External power adapter (not included)
Technical Information
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 85%
Physical Characteristics
Form Factor: External
Built-in Devices: 512 MB flash, 512 MB RAM, microSDXC card reader
Dimensions and Weight
Height: 0.9 inch
Width: 5 inch
Depth: 2.2 inch
Weight: 3.77 ounce
Included Items
Included Accessories: AVHS Authentication Key, AXIS Camera Station license key, Hook & loop fastener, I/O connector, Power connector
Certifications and Listing
Compliant Standards #2: G.711, G.726, IEEE 802.1x, IEEE 802.3af
Compliant Standards: AS/NZS CISPR 32 Class B, CISPR 32 Class B, CISPR 35, EAC, EMC, EN 55032 Class B, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(B)/NMB-3(B), IEC 60529 IP20, KN32 Class B, KN35, RCM, UL 62368-1, VCCI Class B
Compliant Standards: G.711, G.726, IEEE 802.1x, IEEE 802.3af
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
