Product Information

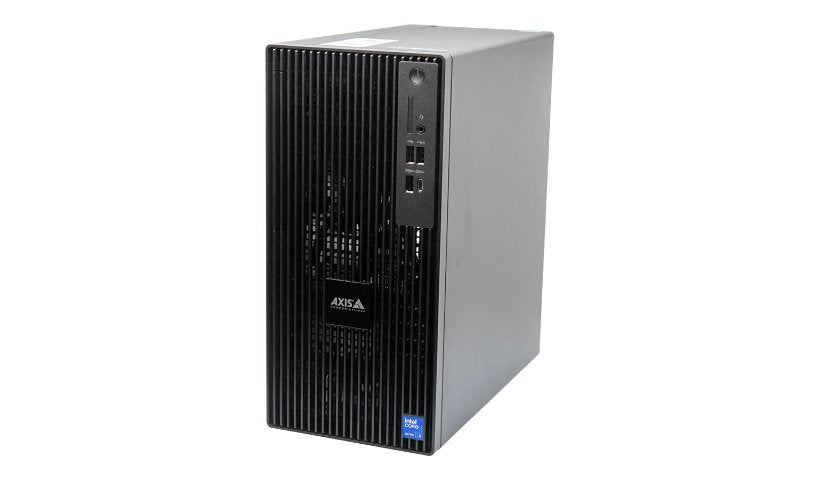

The AXIS Camera Station S1216 Mk II (03428-004) is a tower recording server with an Intel Core Ultra 5 235 (14 cores, up to 5 GHz), 16 GB RAM, a 256 GB SSD and an 8 TB HDD. It runs Windows 11 IoT Enterprise 2024 LTSC with a 16 channel AXIS Camera Station license and TPM 2.0, and has USB-C and USB-A ports. TAA compliant.
Key Features
- Core Ultra 5 235
- 16 GB RAM
- 256 GB SSD, 8 TB HDD
- 16 channel license
- Windows 11 IoT
- Tower, TAA
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS Camera Station
Model: S1216 Mk II
Product Type: Server
Manufacturer Form Factor: Tower
Packaged Quantity: 1
Country: United States
Network and Communication
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Operating System Edition: Windows 11 IoT Enterprise 2024 LTSC
Software Type: AXIS Camera Station (16 channels license)
Connectivity
Type: None
Interface Provided: 1 x headphones/microphone - mini-jack (1 front), 1 x LAN - RJ-45 (1 rear), 1 x USB 3.2 Gen 2x1 - Type A (1 front), 1 x USB 3.2 Gen 2x2 - Type C (1 in front), 1 x USB-C 3.2 Gen 2 - Type C (1 rear), 3 x DisplayPort (3 rear), 3 x USB 3.2 Gen 1x1 - Type A (3 rear), 4 x USB 2.0 - Type A (2 front, 2 rear)
Memory and Processor
Hard Drive (2nd) Features: RAID ready
Processor Generation: Series 2
Processor Main Features: 14 Threads
Cache Memory Installed: 24 megabyte
Max Turbo Speed: 5 GHZ
Cores: 14-core
Hard Drive (2nd) Installed: 1
Hard Drive Capacity (2nd): 8 TB
Processor Brand: Intel
Processor Type: Core Ultra 5
Processor Number: 235
Processors Installed: 1
Clock Speed: 3.4 GHZ
RAM Installed: 16 GB
Total Processor Supported: 1
Hard Drive Capacity: 256 GB
Drive Type: No optical drive
Hard Drive Interface Type: SSD
Storage (2nd): HDD
Storage (3rd): None
Storage (4th): None
Optical Drive Type: No optical drive, None
Optical Drive Type (2nd): None
Technical Information
Configuration Features: 2 x 8 GB
Embedded Security: Trusted Platform Module (TPM 2.0) Security Chip
Operating System: Windows 11 IoT Enterprise
Operating System Platform: Windows
Printer Product Type: None
Min Operating Temperature: 50 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 20 - 80% RH (non-condensing)
Physical Characteristics
Form Factor: Tower
Installed Quantity: 1
Dimensions and Weight
Height: 12.8 inch
Width: 6.1 inch
Depth: 11.5 inch
Weight: 14.55 lbs
Included Items
Included Accessories: Power cable
