Product Information

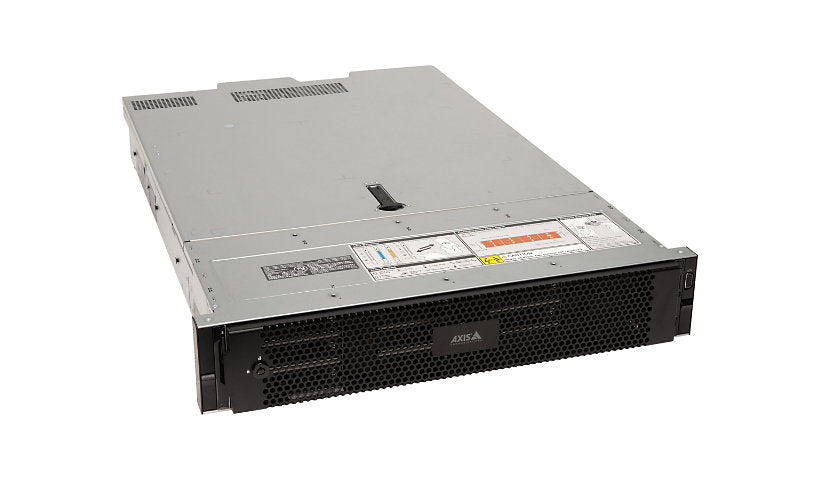

The AXIS Camera Station S1264 (02540-001) is a 2U recording server on an Intel Xeon Silver with 16 GB RAM, 8 x 8 TB enterprise drives in factory RAID 5 plus a 240 GB SSD, and 12 hot swap bays. It runs Windows 10 IoT Enterprise 2021 LTSC with an AXIS Camera Station 64 channel license (80 validated channels), has TPM 2.0, iDRAC and two gigabit ports, and ships with sliding rails.
Key Features
- 8 x 8 TB, RAID 5
- 240 GB SSD
- Xeon Silver, 16 GB
- 64 channel license
- 12 hot swap bays
- 2U, sliding rails
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS Camera Station
Model: S1264 Recorder
Product Type: Server
Manufacturer Form Factor: Rack-mountable
Packaged Quantity: 1
Country: Argentina, Australia, Brazil, Europe, India, Japan, Korea, United Kingdom, United States
Network and Communication
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Operating System Edition: Windows 10 IoT Enterprise 2021 LTSC
Features: 80 validated video channels
Software Type: AXIS Camera Station (64 channels license)
Connectivity
Interface Provided: 1 x management (1 in front) (iDRAC Direct port), 1 x management (1 rear) (iDRAC dedicated port), 1 x USB 3.0 (1 rear), 2 x LAN (Gigabit Ethernet) - RJ-45 (2 rear), 2 x USB 2.0 (1 front, 1 rear), 2 x VGA (1 front, 1 rear)
Ethernet Ports: 2 x Gigabit Ethernet
Memory and Processor
Removable Hard Drive: Hot-swap
Hot-Swap Bays: 12
Hard Drive Features: Enterprise Class, RAID 5 - factory configured
Storage Controller Type: RAID
RAID Levels: RAID 0, RAID 1, RAID 10, RAID 5, RAID 6
Hard Drive (2nd) Installed: 1
Hard Drive Capacity (2nd): 240 GB
Processor Brand: Intel
Processor Type: Xeon Silver
Processors Installed: 1
RAM Installed: 16 GB
Hard Drive Capacity: 8 TB
Drive Type: No optical drive
Hard Drive Interface Type: HDD
Storage (2nd): SSD
Storage (3rd): None
Storage (4th): None
Optical Drive Type: No optical drive, None
Optical Drive Type (2nd): None
Technical Information
Configuration Features: 2 x 8 GB
Embedded Security: Trusted Platform Module (TPM 2.0) Security Chip
Operating System: Windows 10 IoT
Operating System Platform: Windows
Server Storage Bays: Hot-swap
Printer Product Type: None
Min Operating Temperature: 50 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 20 - 80% RH (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 2
Installed Quantity: 8
Dimensions and Weight
Height: 3.4 inch
Width: 19 inch
Depth: 28.4 inch
Weight: 50.49 lbs
Included Items
Included Accessories: ReadyRails sliding rails
