Product Information

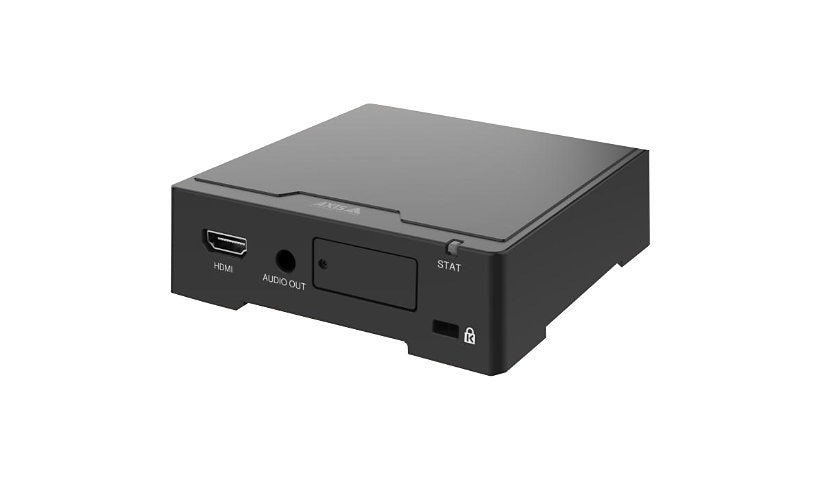

The AXIS D1110 is a 4K video decoder that shows live video on an HDMI monitor with no PC, in sequence view or up to 8 streams in multiview, and can also play signage content with or without audio. It decodes H.264 and H.265, has a 3.5 mm audio out and 2 USB ports, runs on PoE or 10 to 28 V DC and includes Axis Edge Vault and secure boot. 5 year limited warranty.
Key Features
- 4K output over HDMI
- Up to 8 streams multiview
- H.264 and H.265
- PoE or 10 to 28 V DC
- Edge Vault, secure boot
- 5 year limited warranty
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: D1110
Device Type: Video decoder
Packaged Quantity: 1
Color: NCS S 9000-N
Color Category: Black
Country: Argentina, Australia, Brazil, China, Europe, India, Japan, Korea, United Kingdom, United States
Network and Communication
DDNS Support: Yes
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols: Bonjour, CDP, CIFS, DHCPv4, DHCPv6, HTTP, HTTPS, ICMPv4, ICMPv6, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MDNS, MQTT, RTCP, SMB, SMTP, SNMP, SNMP 1, SNMP 2c, SNMP 3, SSH, Syslog, TLS, UPnP, USGv6, Zeroconf
Network Ports: 10/100/1000Base-T (PoE)
Operating System Edition: AXIS OS
Features: 4K UHD video streaming, Aluminum housing, Axis device ID, Axis Edge Vault, Brute force delay protection, Digest authentication, Password protection, PoE powered, Secure Boot, Secure keystore, Security slot (Kensington security lock compatible), Signed firmware
Connectivity
Additional Ports: USB x 2
Audio Outputs: Mini-phone stereo 3.5 mm x 1
Video Output Ports: HDMI x 1
Audio Channels: 8
Power
Input Voltage: 10 - 28 V
Power Consumption: 17 watt
Technical Information
Compression Format: H.264, H.265, HEVC
Video Channels: 8
Image Resolution: 1280x720, 1920x1080, 3840x2160, 720x480, 720x576
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 85% (non-condensing)
Dimensions and Weight
Height: 1.4 inch
Width: 4.5 inch
Depth: 4.5 inch
Weight: 17.64 ounce
Certifications and Listing
Compliant Standards: AS/NZ CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1 Third Edition, CISPR 32 Class A, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, ETSI EN 303 645, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP30, IEC/EN 62368-1 Third Edition, IEEE 802.1ae, IEEE 802.1af, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3at, IP30, KC, KS C 9832 Class A, KS C 9835, NIST SP500-267, RCM, UKCA, UL/cUL, VCCI, VCCI Class A
Warranty
Manufacturer Limited Warranty: 5 year limited warranty
