Product Information

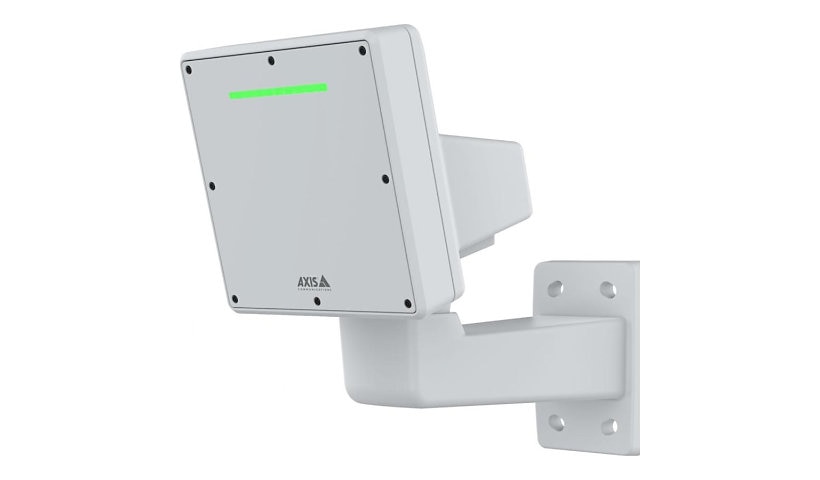

This white Axis D2210-VE uses 61 GHz radar to detect motion up to 492 ft across 95 degrees and adds 1080p video in H.264 and H.265 with a dynamic LED strip. It supports ONVIF Profiles G, M, S and T and microSD, and is powered by PoE or an adapter from -40 to 60 C. Wall mount included. TAA compliant. It is a sensor, not a card reader.
Key Features
- 61 GHz radar, 492 ft range
- 95 degree view
- 1080p H.264 and H.265
- ONVIF G, M, S, T
- PoE or adapter, -40 to 60 C
- TAA compliant, white
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: Axis
Model: D2210-VE Radar
Product Type: Motion Sensor
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Features #2: Edge-to-edge, H.264 streaming video, H.265 streaming video, Integrated dynamic LED strip, Motion JPEG support, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support
Connectivity Technology: Wired
Authentication Method: EAP-TLS
Frequency Band: 61 GHz
Features: ARP support, CDP support, CIFS/SMB support, DDNS (Dynamic Domain Name Service), DHCPv4/v6 support, DNS/DNSv6 support, FTP support, HTTP support, HTTP/2 support, HTTPSg support, ICMPv4/ICMPv6 support, IGMPv1/v2/v3 support, Internet Control Message Protocol (ICMP), IPv4 support, IPv6 support, LLDP support, mDNS, MQTT v3.1.1 support, NTP support, NTS support, QoS Layer 3 DiffServ support, RTCP support, RTP support, RTSP support, SFTP support, SMTP support, SNMP v1/v2c/v3 (MIB-II) support, SRTP/RTSPS support, SSH support, TCP support, TLSg support, Trusted Platform Module 2.0 (TPM 2.0), UDP, UPnP, ZeroConf support
Features: Edge-to-edge, H.264 streaming video, H.265 streaming video, Integrated dynamic LED strip, Motion JPEG support, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support
Connectivity
Interfaces: DC input, Gigabit Ethernet, Terminal block
Power Over Ethernet (PoE): PoE Class 4 / PoE Class 6
Power
Power Source: PoE, Power adapter
Memory and Processor
RAM Installed: 1048 megabyte
Flash Memory Installed: 8192 megabyte
Flash Memory Cards Supported: microSD, SDHC, SDXC
Technical Information
Max Viewing Angle: 95 degrees
Video Modes: 1080p
Max Motion Sensing Distance: 492 ft
Touchscreen: No
Max Video Resolution: 1920 x 1080
Dimensions and Weight
Weight: 2.76 lbs
Included Items
Included Accessories: Cable gaskets, Connector guard, Owner authentication key, Terminal block connectors, Wall mount
Certifications and Listing
Compliant Standards: CAN/CSA-C22.2 No. 62368-1 Third Edition, Common Criteria EAL4+, CSA, cUL, EN 301.489.3, EN 301489-1, EN 305550-2, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, ETSI EN 303 645, FCC Part 15 B Class A, FCC Part 15 Subpart C, FIPS 140-2 Level 2, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, IEC/EN/UL 62368-1 Third Edition, IEEE 802.1ar, IEEE 802.1x, NEMA 250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), NIST SP500-267, RFC3164, RFC5424, UL, USGv6
TAA Compliant: Yes
Not sure this item fits your setup? Send us the model of your current access control system, reader or host device and how you plan to use it, and the DatorPro team will help you confirm compatibility before you order.
