Product Information

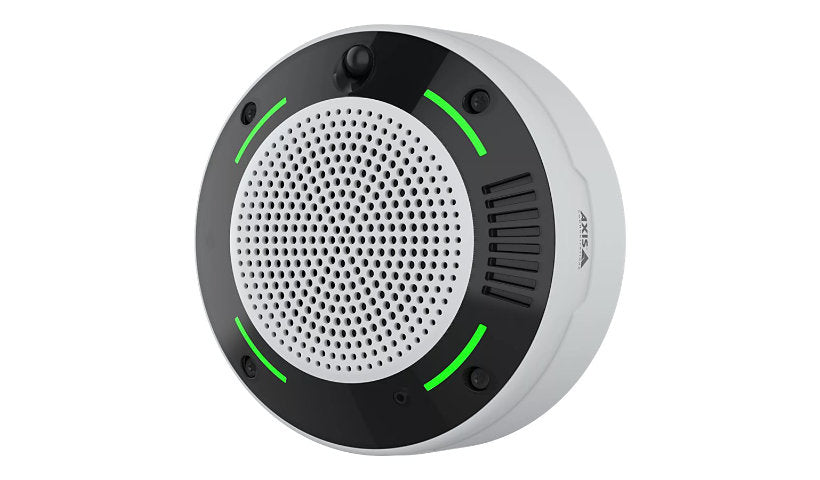

The Axis D6310 is an indoor air quality sensor that measures humidity, CO2, particulate matter, NO2 and VOCs and can detect smoking and vaping. It has a PIR motion sensor, microphone and speaker for two way audio, visual alerts and a vandal resistant white housing, is PoE powered and TAA compliant.
Key Features
- Humidity, CO2, PM, NO2 and VOC
- Smoking detection
- PIR motion sensor up to 16.4 ft
- Microphone, speaker, visual alert
- PoE, Gigabit Ethernet, RS-422/485
- TAA compliant
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: Axis
Model: D6310
Product Type: Air quality sensor
Packaged Quantity: 1
Color: NCS S 1002-B, White
Color Category: White
Network and Communication
Features #2: 16:9 aspect ratio, Audio Detection, Cigarette smoking detection, Echo Cancellation, Full duplex support, H.264 compression standard, H.265 compression standard, LED status indicators, Motion JPEG support, Two-way communication, Vandal-resistant, Visual alert
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Wired Protocol: 10/100/1000 Ethernet
Features: CDP, CIFS/SMB support, DDNS (Dynamic Domain Name Service), DHCPv4/v6 support, DNS/DNSv6 support, FTP support, HTTP support, HTTPS support, IPv4 support, IPv6 support, mDNS, MQTT v3.1.1 support, NTP support, NTS support, QoS Layer 3 DiffServ support, RTCP support, RTP support, RTSP support, SFTP support, SMTP support, SRTP/RTSPS support, SSH support, Syslog support, TCP support, TLS encryption, UDP, UPnP
Features: 16:9 aspect ratio, Audio Detection, Cigarette smoking detection, Echo Cancellation, Full duplex support, H.264 compression standard, H.265 compression standard, LED status indicators, Motion JPEG support, Two-way communication, Vandal-resistant, Visual alert
Connectivity
Interfaces: Gigabit Ethernet, Serial (RS-422/RS-485)
Power
Power Source: PoE
Memory and Processor
Processor Number: AML8726-MXS
RAM Installed: 1 GB
Flash Memory Installed: 8 GB
Technical Information
Environment: Indoor
Functions: Air quality measurement
Integrated Sensors: Passive infrared motion sensor (PIR)
Max Motion Sensing Distance: 16.4 ft
Touchscreen: No
Integrated Components: Microphone, Speaker
Physical Characteristics
Materials: Aluminum, Plastic
Dimensions and Weight
Height: 2.4 inch
Width: 5.9 inch
Depth: 5.9 inch
Weight: 29.27 ounce
Included Items
Included Accessories: Mounting kit
Certifications and Listing
Compliant Standards: AS/NZS CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1 Third Edition, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, EN/IEC 63000:2018, ETSI EN 303 645, FCC Part 15 A, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60825-1:2014 Class 1, IEC/EN 62262 IK08, IEC/EN/UL 62368-1, IEEE 802.1ar, IEEE 802.1x, IPv4, IPv6, KC, KS C 9832 Class A, KS C 9835, NIST SP500-267, RCM, REACH 1907/2006/CE, RoHS 2011/65/EU Amendment 2015/863, SCIP, TLS, UL, USGv6, VCCI, VCCI Class A
TAA Compliant: Yes
