Product Information

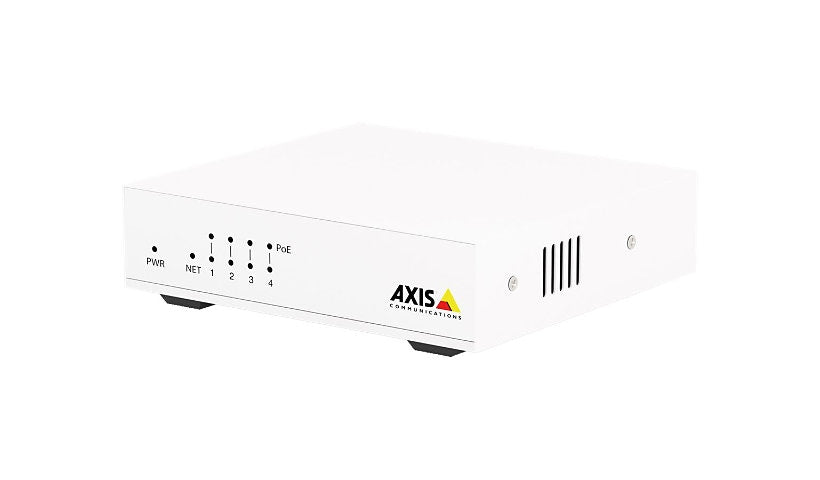

The Axis D8004 (02101-004) is a palm sized unmanaged switch that powers up to four network devices over 10/100 PoE+ ports at 30 W each, with one extra 10/100 uplink and a 60 W budget. Mounting brackets and rubber feet are included.
Key Features
- 4 x 10/100 PoE+ ports, 30 W each
- 1 x 10/100 uplink port
- 60 W PoE budget
- Unmanaged, plug and play
- Mounting brackets and rubber feet
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: Axis
Model: D8004
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Switching Type: Fast Ethernet
Manageable: No
Connectivity
Ports: 4
Port Quantity: 4
Port Type: 10/100 (PoE+)
Ports (2nd) Quantity: 1
Ports Type (2nd): 10/100
Interface Provided: 1 x 100Base-TX RJ-45, 4 x 100Base-TX RJ-45 PoE+ - 30 W
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter
Frequency: 50/60 hertz
Power Consumption Operational: 62.5 watt
PoE Budget: 60 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 122 degree Fahrenheit
Humidity Range Storage: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Status
Dimensions and Weight
Height: 0.8 inch
Width: 3.5 inch
Depth: 3.1 inch
Weight: 6.07 ounce
Included Items
Included Accessories: 2 mounting brackets, 4 rubber feet
Certifications and Listing
Compliant Standards: C-Tick, EN 50581, EN 55022:2010, EN 55032:2012+AC:2013 Class B, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15 B Class B, ICES-003 Class B, IEC/EN/UL 60950-1, Plug and Play, RCM, WEEE
Compliant Standards: IEEE 802.3af, IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
