Product Information

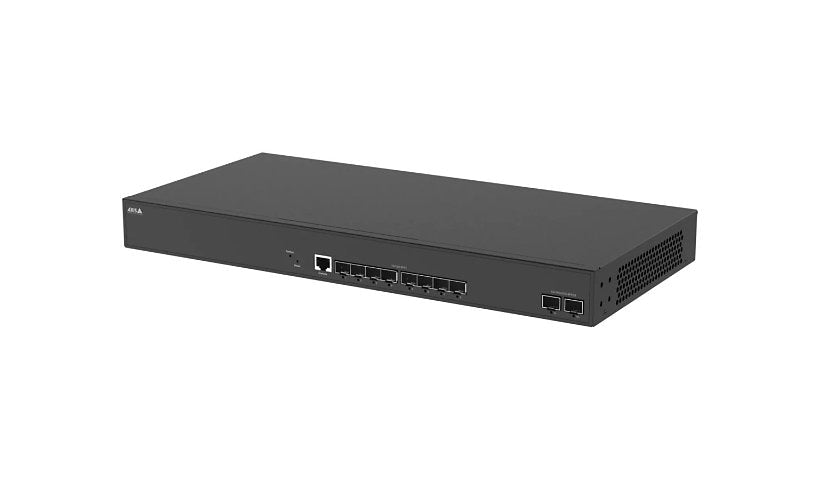

Axis' D8308 is a managed fiber aggregation switch with eight 10G SFP+ ports and two 25G SFP28 uplinks, for larger surveillance networks. It offers 260 Gbps of switching capacity, Layer 2 and Layer 3 features and works with AXIS Device Manager, and it is TAA compliant.
Key Features
- 8 x 10G SFP+ ports
- 2 x 25G SFP28 uplinks
- 260 Gbps, 193.44 Mpps
- Layer 2 and Layer 3, ACL, LACP
- AXIS Device Manager and Site Designer
- Rack ears and rubber feet, TAA
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: Axis
Model: D8308
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Country: United States
Network and Communication
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, RADIUS, SNMP 1, SNMP 2c, SNMP 3, SSH, Syslog, TACACS+, TCP/IP, UDP
Routing Protocol: IGMP, IGMPv2, IGMPv3, OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2, RSTP, Static IPv4 routing, Static IPv6 routing, STP
Performance: Switching capacity: 260 Gbps, Throughput: 193.44 Mpps
MAC Address Table Size: 32K entries
Jumbo Frame Support: 10240 bytes
Features: Access Control List (ACL) support, ARP inspection, ARP support, CDP, DHCP snooping, HTTPS encryption, LACP, Layer 2 switching, Layer 3 switching, LLDP, LLDP-MED, Loop protection, mDNS, Password protection, Private VLAN, Public Key Infrastructure (PKI), QoS Layer 3 DiffServ support, Steel housing, Surge protection, UPnP
Software Type: AXIS Device Manager, AXIS Site Designer
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10 Gigabit SFP+
Ports (2nd) Quantity: 2
Ports Type (2nd): 25 Gigabit SFP28
Interface Provided: 1 x console RJ-45, 2 x 25GBase-SR/LR SFP28 uplink, 8 x 10GBase-SR/LR SFP+
Power
Required Voltage: AC 100-250 volt
Frequency: 50/60 hertz
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% RH (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 95% RH (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 8.3 inch
Weight: 5.69 lbs
Included Items
Included Accessories: 19" ear rack kit, 4 rubber feet
Certifications and Listing
Compliant Standards: IEEE 802.1Q, IEEE 802.1x
Compliant Standards: AS/NZS 62368.1:2022, CAN/CSA C22.2 No. 62368-1 Third Edition, CFR free, CISPR 32 Class A, CSA, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 63000:2018, FCC, FCC Part 15 B Class A, ICES, ICES-3(A)/NMB-3(A), IEC/EN/UL 62368-1 Third Edition, PVC-free, RCM, REACH 1907/2006/CE, ROHS Directive 2011/65/EU, UL/cUL, VCCI, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
