Product Information

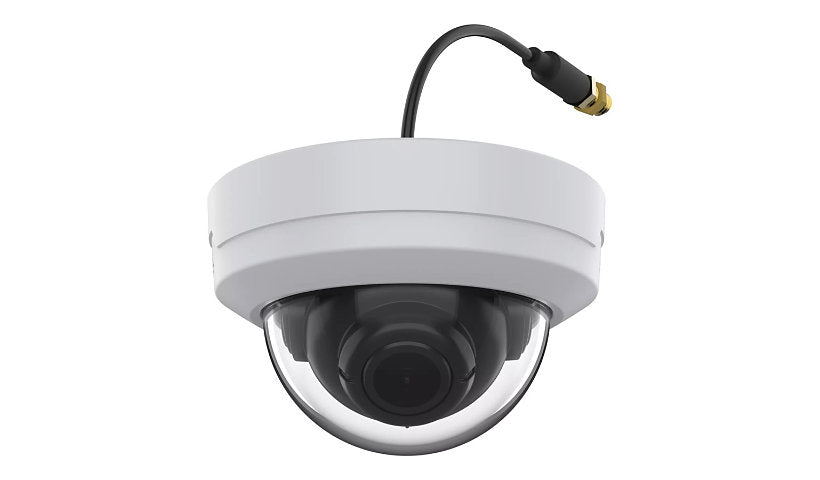

The AXIS F4108 (03055-001) is a 4K indoor dome sensor unit for the AXIS F series, sending video over an SMA connection to a separate F series main unit. It uses a fixed 4.3 mm lens with a 107 degree horizontal view, draws just 0.9 W, and is TAA compliant.
Key Features
- 4K sensor unit
- AXIS F series
- 4.3 mm, 107 degrees
- SMA video output
- 0.9 W draw
- Indoor, TAA compliant
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS F series
Model: F4108
Packaged Quantity: 1
Color: NCS S 1002-B, White
Color Category: White
Country: Argentina, Australia, Brazil, China, Europe, India, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Features: Plastic housing, Polycarbonate bubble
Connectivity
Ports: Video output - SMA
Power
Power Consumption Operational: 0.9 watt
Technical Information
Angular Field of View (H, Max, Degree): 107
Angular Field of View (V, Max, Degree): 54
Camera Type: Surveillance camera
Tilt: 0 to 62
Panning Range (degree): -92 to +260
Camera Iris: Fixed iris
Lens Mount: M12 mount
Video Modes: 4K
Image Sensor Size: 1/2.9"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/1.8
Min Focal Length: 4.3 millimetre
Sensor Size (metric): 8.8 mm (1/2.9")
Digital Video Capture Resolution: 3840 x 2160
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1 second (time unit)
Shutter Speed (Min): 1/7500 second (time unit)
Focal Length Control: Fixed focal
Video Input: Color
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 85% RH (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Weight: 3.17 ounce
Certifications and Listing
Compliant Standards: AS/NZS CISPR 32 Class A, BFR-free, CAN/CSA C22.2 No. 62368-1 Third Edition, CFR free, CISPR 32 Class A, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, EN/IEC 63000:2018, FCC, FCC Part 15 Subpart B, ICES, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC/EN 60529 IP42, IEC/EN 62262 IK08, IEC/EN/UL 62368-1 Third Edition, JS709, KC, KS C 9832 Class A, KS C 9835, PVC-free, RCM, REACH 1907/2006/CE, RoHS 2011/65/EU, RoHS 2015/863, SCIP, UL/cUL, VCCI, VCCI Class A, WEEE
TAA Compliant: Yes
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
