Product Information

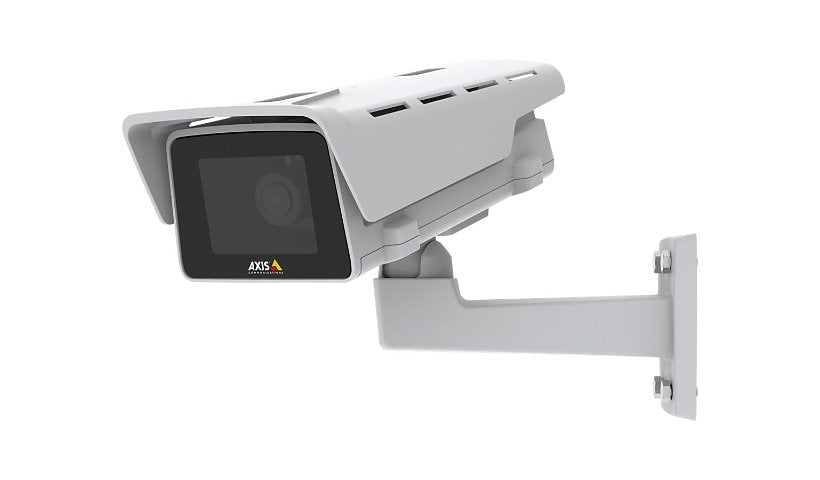

The AXIS M1135-E MK II (02622-001) is a 2 MP outdoor box camera recording 1080p at 30 fps through a 3.5 to 10 mm i-CS lens (2.9x zoom) with a 101 to 33 degree horizontal view. It runs AXIS Object Analytics and Video Motion Detection, offers two way audio via edge to edge technology, and is dust, water, shock and corrosion resistant. An AXIS T94Q01A wall mount is included.
Key Features
- 2 MP, 1080p30
- 3.5 to 10 mm i-CS
- AXIS Object Analytics
- Edge to edge audio
- Corrosion resistant
- T94Q01A wall mount
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: M1135-E MK II
Packaged Quantity: 1
Country: Argentina, Australia, Brazil, China, European Union, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Features: Active tampering alarm, Adaptive Bitrate (ABR), Aspect ratio correction, Audio Detection, Auto gain control, Axis device ID, Axis Edge Vault, Brute force delay protection, Digest authentication, Digital PTZ function, Fine tuning of behavior at low light, Forensic WDR, Image mirror, Image overlay, Infrared-cut filter, IP address filtering, IR Corrected lens, Lightfinder technology, Low latency mode, Machine learning processing unit (MLPU), Memory card encryption, Multi-Bitrate (MBR), Network speaker pairing, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, Pixel Counter Support, Privacy Mask Function, Remote focus, Remote zoom, Secure Boot, Signed firmware, Signed video, Text overlay, VAPIX support, Variable Bit Rate (VBR), Zipstream technology
Software Type: AXIS Object Analytics, AXIS Video Motion Detection, Windows decoder 1-user license
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Ports: Audio line-in/microphone - 3.5 mm jack, LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 1 GB
Flash Memory Installed: 512 megabyte
Technical Information
Angular Field of View (H, Max, Degree): 101
Angular Field of View (V, Max, Degree): 53
Auto Iris Control: P-Iris
Max Focal Length: 10 millimetre
Optical Zoom: 2.9
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 33
Angular Field of View (V, Min, Degree): 18
Camera Iris: Auto iris
Lens Mount: I-CS-mount
Min Focus Distance: 2.6 ft
Minimum Illumination: 0.02 lux - B&W - F1.4 - 30 IRE, 0.03 lux - B&W - F1.4 - 50 IRE, 0.1 lux - color - F1.4 - 30 IRE, 0.15 lux - color - F1.4 - 50 IRE
Total Pixels: 2,000,000 pixels
Video Modes: 1080p
Image Sensor Size: 1/2.9"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/1.4
Min Focal Length: 3.5 millimetre
Sensor Size (metric): 8.8 mm (1/2.9")
Digital Video Capture Resolution: 160 x 90, 1920 x 1080
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/33500 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264B, H.264H, H.264M, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support Features: Two-way audio via edge-to-edge technology
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dust resistant / water resistant / shock resistant / corrosion resistant
Form Factor: Box
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 9.4 inch
Width: 5.6 inch
Depth: 12.8 inch
Weight: 3.97 lbs
Included Items
Included Accessories: AXIS T94Q01A Wall Mount, Connector kit, Torx T20 screw driver, Torx T30 screw bit
