Product Information

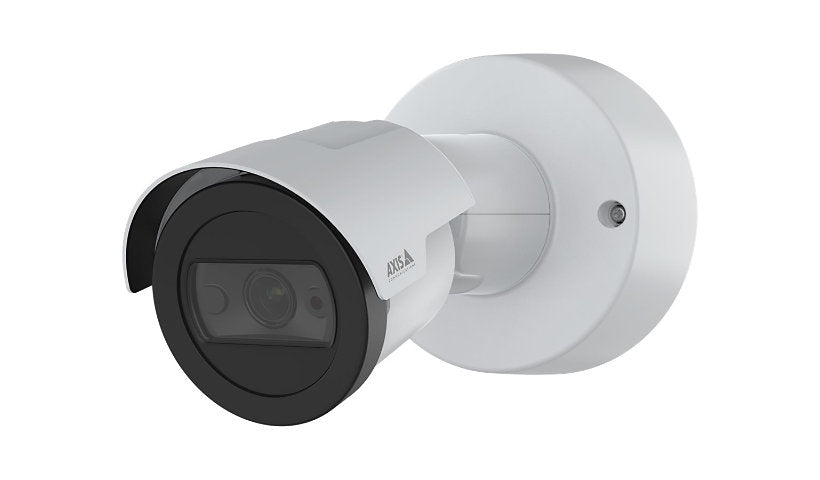

The AXIS M2036-LE (02125-001) is a compact 4 MP outdoor bullet recording 2688 x 1520 at 30 fps through a 2.4 mm lens with a 130 degree view and IR up to 66 ft. It supports deep learning analytics, AXIS Edge Vault, a microSD slot and active tampering alarm, in a weatherproof aluminum housing on PoE Plus Class 3.
Key Features
- 4 MP, 2688 x 1520
- 2.4 mm, 130 degrees
- IR up to 66 ft
- AXIS Edge Vault
- microSD slot
- Weatherproof, PoE
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: M2036-LE
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Features: 180° image rotation, 270° image rotation, 90° image rotation, Active tampering alarm, Adaptive Bitrate (ABR), Aluminum housing, Axis Edge Vault, Brightness control, Brute force delay protection, Centralized certificate management, Color control, Compression, Contrast control, Corridor mode, Digest authentication, Digital PTZ function, Edge Storage, Exposure control, HTTPs encryption, Image mirror, Image overlay, Infrared cut filter, IP address filtering, Lightfinder technology, Motion-adaptive exposure, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, Plastic housing, Power over Ethernet, Privacy Mask Function, Progressive scanning, Remote zoom, Secure Boot, Sharpness control, Signed firmware, Text overlay, User access log, VAPIX support, Variable Bit Rate (VBR), Video Motion Detection Technology, White balance, Wide Dynamic Range (WDR), Zipstream technology
Software Type: Windows decoder 1-user license
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: Bonjour, CIFS, DHCP, DNS, FTP, HTTP, HTTPS, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, SRTP, SSH, TCP/IP, TLS, UDP/IP, UPnP, USGv6
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 512 megabyte
Flash Memory Installed: 1 GB
Technical Information
Infrared Distance: 66 ft
Infrared LEDs: Yes
Max Focal Length: 2.4 millimetre
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 130
Angular Field of View (V, Min, Degree): 81
Camera Iris: Fixed iris
Min Focus Distance: 1.6 ft
Minimum Illumination: 0 lux - IR, 0.04 lux - B&W - F2.1 - 50 IRE, 0.18 lux - color - F2.1 - 50 IRE
Total Pixels: 4,000,000 pixels
Video Modes: 1440p
Image Sensor Size: 1/2.7"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/2.1
Sensor Size (metric): 9.4 mm (1/2.7")
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/38500 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Fixed focal
Video Formats: AVC, H.264, H.265, HEVC, MJPEG, MPEG-4, MPEG-H Part 2
Video Input: Color
Touchscreen: No
Max Video Resolution: 2688 x 1520
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 100% RH
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Weatherproof
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4 inch
Width: 4 inch
Depth: 6.7 inch
Weight: 17.32 ounce
Included Items
Included Accessories: Torx L-key
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
