Product Information

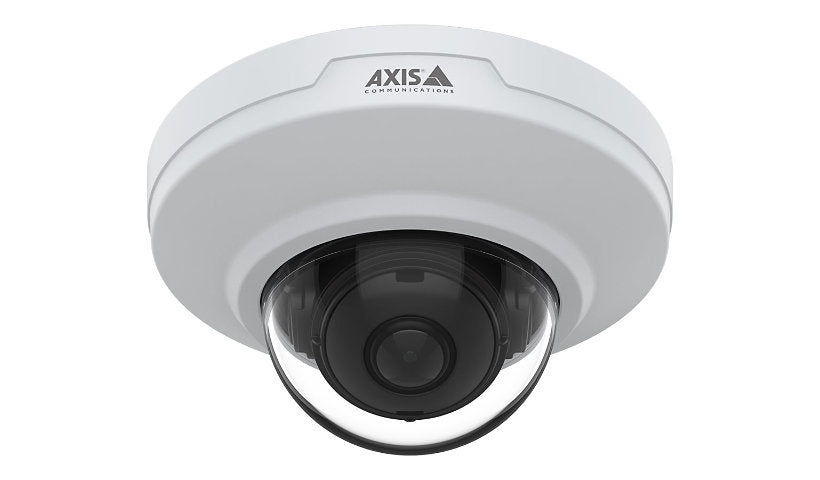

The AXIS M3086-V is a compact 4 MP mini dome recording 2688 x 1512 at 30 fps through a 2.4 mm lens with a 130 degree view. A deep learning processing unit runs AXIS Object Analytics, it has Axis Edge Vault, supports two way audio through an optional interface and runs on PoE+ Class 2. Vandal, impact, dust and water resistant, white.
Key Features
- 4 MP, 2688 x 1512
- 2.4 mm, 130 degree view
- Deep learning analytics
- Axis Edge Vault
- Optional audio interface
- PoE, vandal resistant
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: M3086-V
Packaged Quantity: 1
Color: NCS S 1002-B, White
Color Category: White
Country: Argentina, Australia, Brazil, China, Europe, India, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Features: 180° image rotation, 270° image rotation, 90° image rotation, Axis device ID, Axis Edge Vault, Brightness control, Brute force delay protection, Centralized certificate management, Color control, Compression, Contrast control, Corridor mode, Deep learning processing unit (DLPU), Digest authentication, Digital PTZ function, Exposure control, HTTPs encryption, Human Detection, Image mirror, Infrared-cut filter, IP address filtering, IR Corrected lens, Lightfinder technology, Memory card encryption, Motion-adaptive exposure, Multi-Bitrate (MBR), NAS-Ready, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, Pixel Counter Support, Privacy Mask Function, Secure Boot, Sharpness control, Signed firmware, Up to 2 view areas, User access log, VAPIX support, Variable Bit Rate (VBR), Vehicle Detection, White balance, Wide Dynamic Range (WDR), Zipstream technology
Software Type: AXIS Object Analytics, AXIS Video Motion Detection, Windows decoder 1-user license
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: Bonjour, CDP, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 1 GB
Flash Memory Installed: 512 megabyte
Technical Information
Tilt: -80 to +80
Motion Detection: Yes
Panning Range (degree): -175 to +175
Angular Field of View (H, Min, Degree): 130
Angular Field of View (V, Min, Degree): 93
Camera Iris: Fixed iris
Minimum Illumination: 0.03 lux - B&W - F2.1 - 50 IRE, 0.19 lux - color - F2.1 - 50 IRE
Total Pixels: 4,000,000 pixels
Image Sensor Size: 1/2.7"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/2.1
Min Focal Length: 2.4 millimetre
Sensor Size (metric): 9.4 mm (1/2.7")
Digital Video Capture Resolution: 2688 x 1512, 320 x 240
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/38500 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Fixed focal
Video Formats: AVC, H.264, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2
Video Input: Color
Audio Support: Yes
Audio Support Features: Two-way audio via optional audio and I/O interface
Touchscreen: No
Max Video Resolution: 2688 x 1512
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 85% RH (non-condensing)
Physical Characteristics
Protection: Vandal resistant / impact resistant / dust resistant / water resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.2 inch
Width: 4 inch
Depth: 4 inch
Weight: 5.29 ounce
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
