Product Information

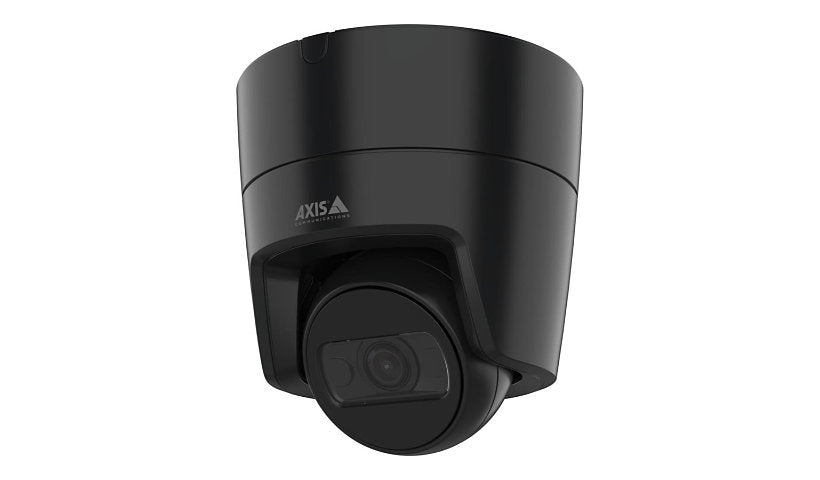

This AXIS M3126-LVE (02919-001) is an outdoor 4 MP mini turret recording 2688 x 1512 at 30 fps with a 2.4 mm lens and a wide 130 degree view. Its deep learning unit powers AXIS Object Analytics and Live Privacy Shield, with two way audio, line crossing detection and Axis Edge Vault, on PoE Class 3. Vandal and weatherproof. TAA compliant.
Key Features
- 4 MP, 2688 x 1512
- 130 degree view
- AXIS Object Analytics
- Line crossing detection
- Two way audio
- PoE, TAA compliant
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: M3126-LVE
Packaged Quantity: 1
Country: Argentina, Australia, Brazil, China, Europe, Japan, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Encryption: EAP-TLS, FIPS 140-3 Level 3, MSCHAPv2, PEAP
Features: AI-powered, Ambarella CV25 SoC, Axis Edge Vault, Brightness control, Compression, Contrast control, Corridor mode, Cross Line Detection, Day/night shift level, Day/night threshold, Deep learning processing unit (DLPU), Digital PTZ function, Dynamic text overlay, Exposure mode, Exposure zone, Heater, Image mirror, Image overlay, Level grid, Line Crossing support, Local contrast control, Object enter area detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, OptimizedIR, Perspective configuration, Pixel Counter Support, Plastic housing, Polygon privacy mask, Privacy Mask Function, Rotation mode, Saturation control, Sharpness control, Speaker pairing, Text overlay, Trigger capture, WDR technology, White balance, Zipstream technology
Software Type: AXIS Live Privacy Shield, AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCPv4, DHCPv6, DNS, DNSv6, FTP, HTTP, HTTP/2, HTTPS, ICMP, ICMPv4, ICMPv6, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MDNS, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP, TLS, UDP, UPnP, USGv6, Zeroconf
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
RAM Installed: 1024 megabyte
Flash Memory Installed: 512 megabyte
Technical Information
Angular Field of View (H, Max, Degree): 130
Angular Field of View (V, Max, Degree): 73
Tilt: 0 to 60
Motion Detection: Yes
Panning Range (degree): -180 to +180
Camera Iris: Fixed iris
Lens Mount: M12 mount
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - IR, 0.04 lux - B&W - F1.2 - 50 IRE, 0.19 lux - color - F1.2 - 50 IRE
Total Pixels: 4,000,000 pixels
Image Sensor Size: 1/2.7"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/2.1
Min Focal Length: 2.4 millimetre
Sensor Size (metric): 9.4 mm (1/2.7")
Digital Video Capture Resolution: 160 x 90, 2688 x 1512
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/38500 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 2688 x 1512
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 100% RH (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal / weatherproof
Form Factor: Turret
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 3.7 inch
Width: 4 inch
Depth: 4 inch
Weight: 13.76 ounce
Included Items
Included Accessories: Cable gaskets, Connector guard, Owner authentication key
