Product Information

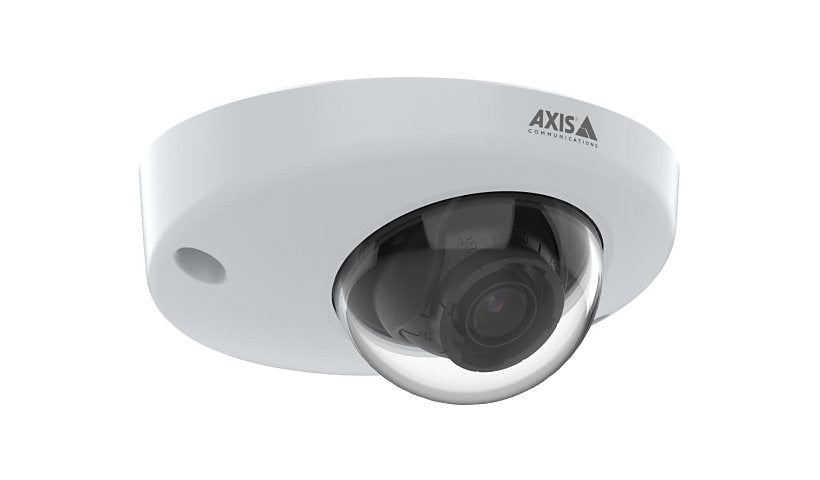

The Axis M3905-R is a compact 2 MP dome camera built for transport use, meeting bus fire safety rules and handling vibration and wide temperatures. Lightfinder and Forensic WDR keep detail in hard light, with an 88 degree horizontal view, H.264/H.265 and Zipstream. It is a camera, not a card reader.
Key Features
- 2 MP, 1920 x 1080 at 30 fps
- Lightfinder and Forensic WDR
- 88 degree horizontal view
- H.264, H.265, Zipstream
- Rugged onboard design, microSD
- Camera, not a reader
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: M3905-R
Packaged Quantity: 1
Country: Argentina, Australia, Brazil, China, Europe, India, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Encryption: TLS 1.2, TLS 1.3
Features: 16:10 aspect ratio, 16:9 aspect ratio, 180° image rotation, 270° image rotation, 2D Noise Reduction Technology, 3D Noise Reduction Technology, 4 video streams, 4:3 aspect ratio, 90° image rotation, Adaptive Bitrate (ABR), Axis device ID, Axis Edge Vault, Brute force delay protection, Control queue, Corridor mode, Digest authentication, Digital PTZ function, Dynamic text overlay, Forensic WDR, Guard tour, Image mirror, Lightfinder technology, Multi-Bitrate (MBR), Network Time Security (NTS), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, Pixel Counter Support, Polygon privacy mask, Secure Boot, Secure keystore, Signed firmware, Signed video, Variable Bit Rate (VBR), Video streaming indicator, Zipstream technology
Software Type: AXIS Video Motion Detection, Windows decoder 1-user license
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCPv4, DHCPv6, DNS, DNSv6, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, SRTP, SSH, Syslog, TCP, TLS, UDP, UPnP, Zeroconf
Ports: LAN - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 1 GB
Flash Memory Installed: 512 megabyte
Technical Information
Tilt: 15 to 90
Motion Detection: Yes
Panning Range (degree): -30 to +30
Angular Field of View (H, Min, Degree): 88
Angular Field of View (V, Min, Degree): 47
Camera Iris: Fixed iris
Lens Mount: M12 mount
Min Focus Distance: 1 ft
Minimum Illumination: 0.04 lux - color - F2.0 - 30 IRE, 0.13 lux - color - F2.0 - 50 IRE
Total Pixels: 2,000,000 pixels
Image Sensor Size: 1/2.9"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/2.0
Min Focal Length: 3.6 millimetre
Sensor Size (metric): 8.8 mm (1/2.9")
Digital Video Capture Resolution: 1280 x 800, 1280 x 960, 1920 x 1080, 320 x 240, 640 x 360, 640 x 400
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/19000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264B, H.264H, H.264M, H.265, MJPEG
Video Input: Color
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2 inch
Width: 4.3 inch
Depth: 4.3 inch
Weight: 8.5 ounce
Included Items
Included Accessories: Lens tool
