Product Information

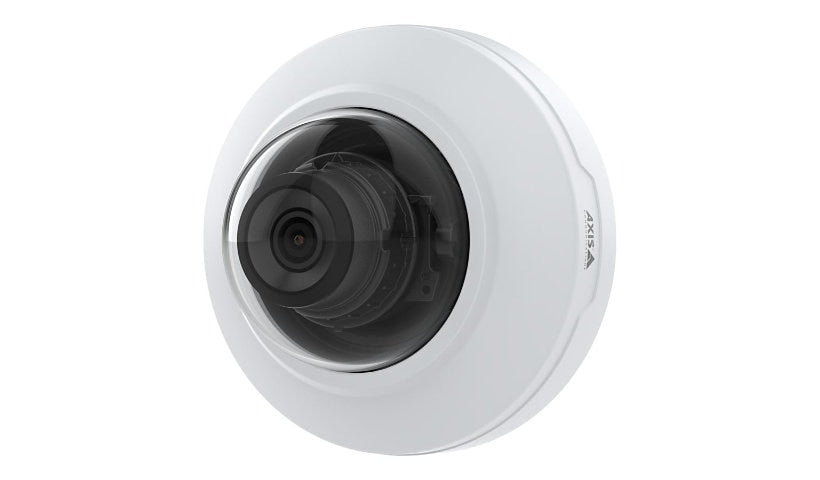

The AXIS M4218-V is an indoor 8 MP dome recording 3840 x 2160 at 15 fps with a 3.5 to 6.6 mm varifocal lens. It has an HDMI output for a local monitor, audio support and AXIS Object Analytics, Face Detector and Live Privacy Shield, running on PoE Class 2. White.
Key Features
- 8 MP, 4K at 15 fps
- 3.5 to 6.6 mm varifocal
- HDMI output
- Object Analytics, Face Detector
- PoE Class 2
- Indoor, white
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: M4218-V
Packaged Quantity: 1
Color: NCS S 1002-B, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: AXIS Object Analytics
Software Type: AXIS Face Detector, AXIS Live Privacy Shield, AXIS Object Analytics, AXIS Video Motion Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MDNS, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, TCP, TLS, UDP, UPnP, Zeroconf
Ports: HDMI - Type D, LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card
RAM Installed: 2 GB
Flash Memory Installed: 512 megabyte
Technical Information
Angular Field of View (H, Max, Degree): 93
Angular Field of View (V, Max, Degree): 50
Video Signals: HDMI
Max Focal Length: 6.6 millimetre
Optical Zoom: 1.9
Video Capture: 3840 x 2160 @ 15 fps
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 47
Angular Field of View (V, Min, Degree): 26
Minimum Illumination: 0.04 lux - B&W - F1.7 - 50 IRE, 0.24 lux - color - F1.7 - 50 IRE
Total Pixels: 8,000,000 pixels
Video Modes: 2160p
Image Sensor Size: 1/2.8"
Image Sensor Type: WDR CMOS
Min Focal Length: 3.5 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 3840 x 2160
Max Frame Rate: 15 frames per second
Shutter Speed (Max): 1/71500 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 85% RH (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.8 inch
Width: 4.7 inch
Depth: 4.7 inch
Weight: 12.56 ounce
