Product Information

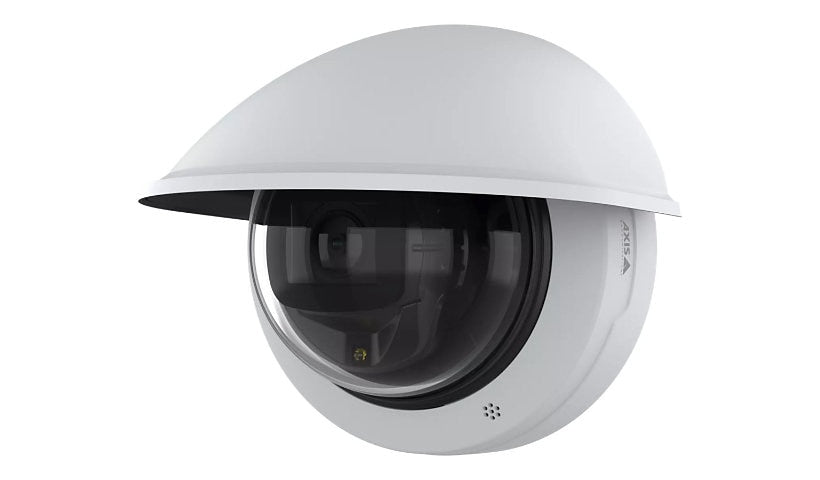

The AXIS M4227-LVE is a 5 MP outdoor dome recording 2592 x 1944 at 30 fps with a 3.2 to 7.2 mm autofocus varifocal lens and an ARTPEC-8 chip. It adds IR, an acoustic sensor for AXIS Audio Analytics, AXIS Object Analytics and Axis Edge Vault, on PoE Class 3. Vandal and weather resistant, weathershield included. TAA compliant. 02815-001.
Key Features
- 5 MP, 2592 x 1944
- 3.2 to 7.2 mm autofocus
- IR illumination
- Acoustic sensor
- AXIS Object Analytics
- PoE, TAA compliant
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS M42 Series
Model: M4227-LVE
Packaged Quantity: 1
Color: NCS S 1002-B, White
Color Category: Black, White
Country: Argentina, Australia, Brazil, Europe, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Features: >55 dB SNR, 180° Rotation, Acoustic sensor, Adaptive Bitrate (ABR), AI-powered, Audio analytics, Automatic IR-cut filter, AXIS Audio Analytics, Axis Edge Vault, AXIS Object Analytics, Brightness control, Compression, Contrast control, Deep learning processing unit (DLPU), Digital PTZ function, Exposure control, Forensic WDR, Human analytics, Image overlay, Infrared-cut filter, IR Corrected lens, Lightfinder 2.0 technology, Line-crossing detection, Low latency mode, Multi-Bitrate (MBR), Object in area, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, OptimizedIR, Plastic housing, Polycarbonate bubble, Privacy Mask Function, PVC Free, Remote focus, Remote zoom, Saturation control, Secure Boot, Sharpness control, Signed OS, Time in area, Variable Bit Rate (VBR), Vehicle analytics, Video streaming indicator, White balance, Zipstream technology
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTCIP, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Ports: LAN/power - RJ-45
Power
Power Device Form Factor: External
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (H, Max, Degree): 98
Angular Field of View (V, Max, Degree): 66
Focus Modes: Automatic
Infrared LEDs: Yes
Max Focal Length: 7.2 millimetre
System Requirements Details: ARTPEC-8
Tilt: -10 to 65
Motion Detection: Yes
Panning Range (degree): 180
Angular Field of View (H, Min, Degree): 38
Angular Field of View (V, Min, Degree): 26
Min Focus Distance: 3.3 ft
Minimum Illumination: 0 lux - infrared LEDs on, 0.03 lux - color - F1.6 - 50 IRE, 0.13 lux - color - F1.6 - 50 IRE
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.7"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/1.6-2.7
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 9.4 mm (1/2.7")
Digital Video Capture Resolution: 2592 x 1944, 2688 x 1512, 320 x 240, 640 x 360
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/5 second (time unit)
Shutter Speed (Min): 1/33500 second (time unit)
Focal Length Control: Vari-focal
Video Formats: AVC, H.264, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2
Video Input: Color
Audio Support: Yes
Touchscreen: No
Max Video Resolution: 2592 x 1944
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal resistant / weather resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.1 inch
Width: 4.7 inch
Depth: 4.7 inch
Weight: 19.05 ounce
Included Items
Included Accessories: Cable gasket, Connector guard, Owner authentication key, Weathershield
