Product Information

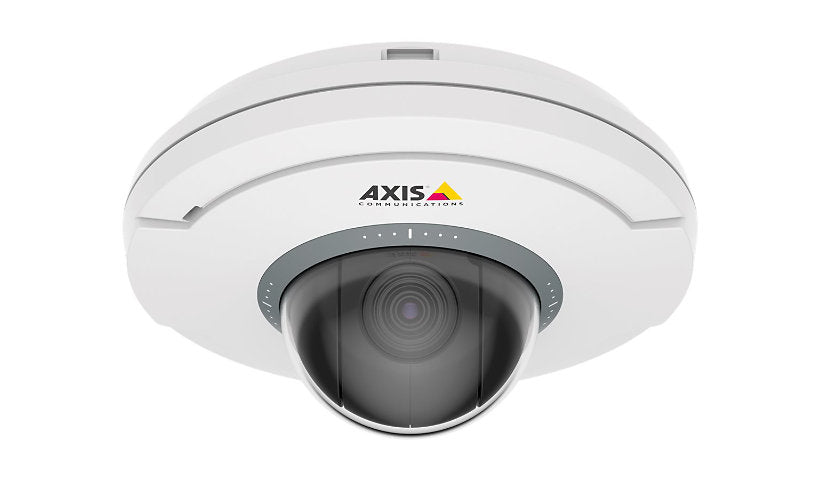

The AXIS M5074 (02345-001) is a palm sized PTZ dome that records 720p at up to 60 fps with a 2.2 to 11 mm lens for 5x optical zoom, 256 presets and a built in mic. It includes AXIS Video Motion Detection and comes with a mounting kit, made for smaller sites that still need pan, tilt and zoom.
Key Features
- 720p, up to 60 fps
- 5x optical zoom
- 256 presets
- Built in mic
- Compact PTZ dome
- Mounting kit included
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: M5074
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Features: 180° image rotation, 256 preset positions, Active tampering alarm, Adaptive Bitrate (ABR), Audio Detection, Brightness control, Constant Bit Rate (CBR), Contrast control, Distortion correction function, E-mail alerts, Exposure control, Exposure zone, Image overlay, IP address filtering, Multi-streaming, NAS-Ready, Notification picture to E-mail, Notification picture to FTP, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, Pixel Counter Support, Plastic housing, Polygon privacy mask, Progressive scanning, Removed Object Detection, Saturation control, Scream detection, Secure Boot, Sharpness control, Signed firmware, Text overlay, Variable Bit Rate (VBR), Video Motion Detection Technology, White balance, Wide Dynamic Range (WDR), Zipstream technology
Software Type: AXIS Video Motion Detection, Windows decoder 1-user license
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, CIFS, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, SRTP, SSH, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 1 GB
Flash Memory Installed: 512 megabyte
Technical Information
Angular Field of View (H, Max, Degree): 71
Angular Field of View (V, Max, Degree): 40
Focus Modes: Automatic
Max Focal Length: 11 millimetre
Optical Zoom: 5
Digital Zoom: 12
Max Panning Speed (degree/sec): 100
Max Tilting Speed (degree/sec): 100
Tilt: 90
Motion Detection: Yes
Panning Range (degree): -179 to +179
Angular Field of View (H, Min, Degree): 14
Angular Field of View (V, Min, Degree): 8
Minimum Illumination: 0.9 lux - color
Total Pixels: 1,000,000 pixels
Video Modes: 720p
Image Sensor Size: 1/4.85"
Image Sensor Type: PS CMOS
Lens Aperture: F/1.4-2.5
Min Focal Length: 2.2 millimetre
Sensor Size (metric): 5.2 mm (1/4.85")
Digital Video Capture Resolution: 1280 x 720, 320 x 180
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/17000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264B, H.264H, H.264M, H.265, HEVC, MJPEG, MPEG-4 AVC, MPEG-4 Part 10, MPEG-H Part 2
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support Features: Built-in microphone
Touchscreen: No
Max Video Resolution: 1280 x 720
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Physical Characteristics
Form Factor: Dome
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 2.5 inch
Width: 5.1 inch
Depth: 5.1 inch
Weight: 13.4 ounce
Included Items
Included Accessories: Mounting kit
