Product Information

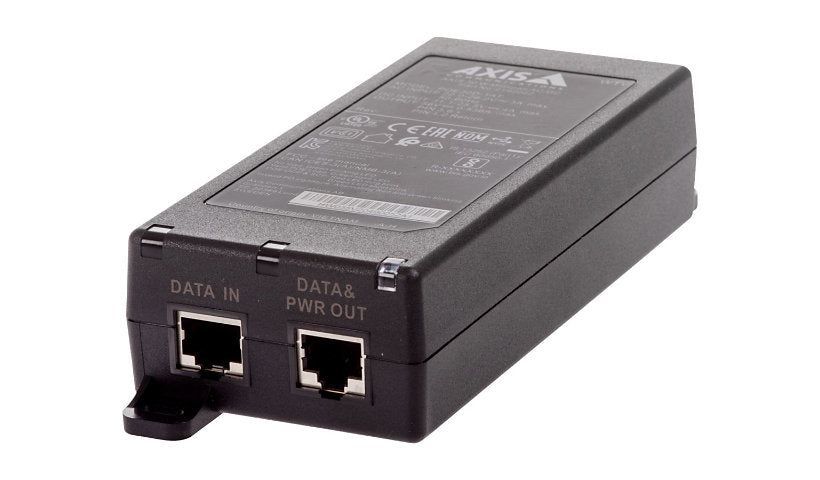

The AXIS Midspan is a 30 W PoE+ injector with one Gigabit RJ-45 port, powered by 24 V AC or 10 to 28 V DC. It is listed for AXIS A1610-B, C1410, D3110, P1385-E, P1455-LE, Q1952-E, W400 and the Q60 Series. It carries a 3 year limited warranty.
Key Features
- PoE+ up to 30 W, 56 V DC
- 1 x Gigabit Ethernet RJ-45
- AC 24 V or DC 10 to 28 V input
- For AXIS A1610-B, C1410, D3110, P1385-E and more
- Compact external design
- 3 year limited warranty listed
Product Information
Brand: Axis
Product Line: AXIS
Model: Midspan
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Compatibility Specs: AXIS A1610-B, C1410, D3110, P1385-E, P1455-LE, P1455-LE-3 License Plate Verifier Kit, Q1952-E, W400 ¦ AXIS Q60 Series Q6078-E 50 Hz, Q6078-E 60 Hz
Packaged Quantity: 1
Color: Black
Connectivity
Interface Provided: 1 x Gigabit LAN - RJ-45
Power Over Ethernet (PoE): PoE+
Output Connector Quantity: 1
Power
Required Voltage: AC 24 / DC 10-28 volt
Power Output Connectors Details: 1 x RJ-45
Power Provided: 30 watt
Form Factor (Power Device): External
Input Connectors: 1
Provided Voltage: DC 56 volt
Technical Information
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Dimensions and Weight
Height: 1.5 inch
Width: 2.6 inch
Depth: 6.5 inch
Weight: 8.22 ounce
Certifications and Listing
Compliant Standards #2: AS/NZS CISPR 32 Class A, EAC, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, EN 62368-1, EN55024, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 62368-1, IS13252, KCC KN32 Class A, KCC KN35, Plug and Play, UL 62368-1, VCCI Class A
Compliant Standards: IEEE 802.3af, IEEE 802.3at
Compliant Standards: AS/NZS CISPR 32 Class A, EAC, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, EN 62368-1, EN55024, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 62368-1, IS13252, KCC KN32 Class A, KCC KN35, Plug and Play, UL 62368-1, VCCI Class A
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
