Product Information

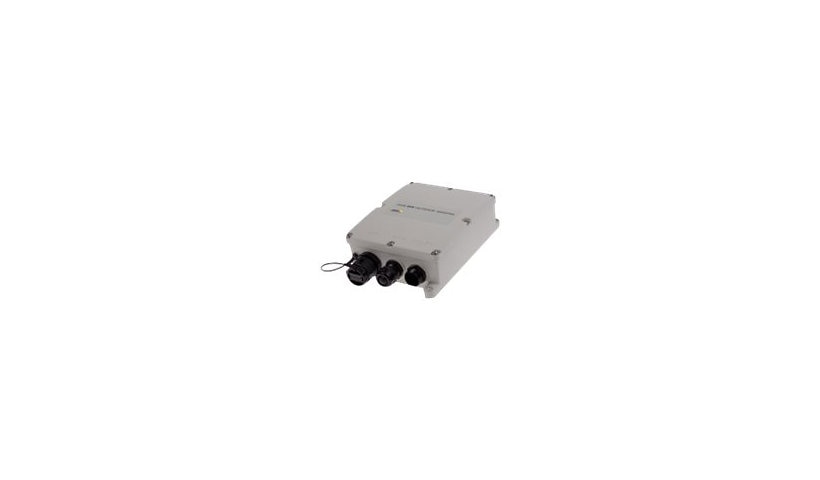

The AXIS Outdoor Midspan (01944-001) is a 30 W PoE/PoE+ injector with a gigabit RJ-45 port, 54 V output and 6 kV surge protection on both the AC and PoE sides, running on 100 to 240 V AC and wall mountable. Listed for AXIS A1610, C1410, D3110, M3205, M4308, P1385, P3818, Q1615, W400, M55 and P37 Series. 3 year limited warranty.
Key Features
- 30 W PoE+ injector
- 6 kV surge protection
- Gigabit RJ-45
- Outdoor midspan
- Wall mountable
- 3 year limited warranty
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: Midspan
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Packaged Quantity: 1
Color Category: White
Network and Communication
Features: Wall Mountable
Connectivity
Interface Provided: 1 x Gigabit LAN - RJ-45
Power
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Output Connectors Details: 1 x RJ-45
Power Provided: 30 watt
Form Factor (Power Device): External
Output Connector Type: RJ-45
Provided Voltage: 54 volt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 10 - 100%
Dimensions and Weight
Height: 6.7 inch
Width: 5.5 inch
Depth: 2.4 inch
Weight: 3.09 lbs
Included Items
Cables: Power cable
Certifications and Listing
Compliant Standards #2: IEEE 802.3af, IEEE 802.3at
Compliant Standards: AS/NZS CISPR 22, CB, CCC, EN 50121-4, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN55024, FCC Part 15 B Class A, IEC 60950-1, IEC 62236-4, IP66, IP67, KC, KCC KN32 Class A, KCC KN35, NEMA Type 4X, RCM, REACH, RoHS, UL 60950-1, VCCI Class A, WEEE
Compliant Standards: IEEE 802.3af, IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
