Product Information

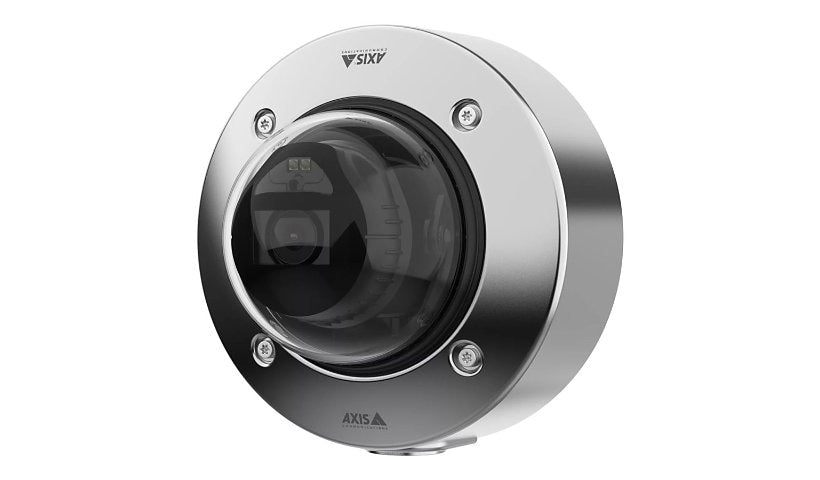

The AXIS P3268-SLVE is a 4K (8 MP) outdoor dome in a marine grade SS 316L stainless steel casing certified for food processing facilities. It has a 4.3 to 8.6 mm varifocal lens, IR up to 131 ft, deep learning analytics, two way audio support and alarm I/O, and runs on PoE Class 3. TAA compliant.
Key Features
- 4K, 8 MP
- SS 316L stainless steel
- Food processing certified
- 4.3 to 8.6 mm, IR 131 ft
- Deep learning analytics
- PoE Class 3, TAA
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS P32 Series
Model: P3268-SLVE
Packaged Quantity: 1
Country: Argentina, Australia, Brazil, China, Europe, India, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Encryption: EAP-TLS, TLS 1.2, TLS 1.3
Features: -190° / +190° rotation, 180° image rotation, 2 video streams, 270° image rotation, 90° image rotation, Active tampering alarm, Adaptive Bitrate (ABR), Audio Detection, Auto gain control, AXIS Object Analytics, Barrel distortion correction, Brightness control, Compression, Contrast control, Corridor mode, Day/night shift level, Deep learning processing unit (DLPU), Defogging, Digital PTZ function, Dynamic text overlay, E-mail alerts, Exposure mode, Exposure zone, Forensic WDR, HTTPs encryption, Image mirror, Image overlay, Infrared-cut filter, IP address filtering, IR Corrected lens, Lightfinder 2.0 technology, Low latency mode, Multi-Bitrate (MBR), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Polycarbonate bubble, Polygon privacy mask, Privacy Mask Function, Remote focus, Remote zoom, Saturation control, Sharpness control, Stainless steel housing, Tone mapping, User access log, Variable Bit Rate (VBR), Video streaming indicator, White balance, Zipstream technology
Software Type: AXIS Live Privacy Shield, AXIS Video Motion Detection, Windows decoder 1-user license
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MDNS, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SIP, SMB, SMTP, SNMP, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Ports: Audio line in - 3.5 mm jack, LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (H, Max, Degree): 100
Angular Field of View (V, Max, Degree): 54
Infrared Distance: 131 ft
Infrared LEDs: Yes
Auto Iris Control: P-Iris
Max Focal Length: 8.6 millimetre
Optical Zoom: 2
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Tilt: -10 to +80
Motion Detection: Yes
Panning Range (degree): -190 to +190
Angular Field of View (H, Min, Degree): 53
Angular Field of View (V, Min, Degree): 30
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - F1.5 - 50 IRE, 0.14 lux - color - F1.5 - 50 IRE
Total Pixels: 8,000,000 pixels
Video Modes: 4K
Image Sensor Size: 1/1.8"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/1.5
Min Focal Length: 4.3 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 160 x 90, 3840 x 2160
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/8500 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support Features: Two-way audio via edge-to-edge technology
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal / weatherproof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.4 inch
Width: 6.5 inch
Depth: 6.5 inch
Weight: 3.88 lbs
Included Items
Included Accessories: Cable gaskets, Connector guard, RESISTORX T20 screw bit, Terminal block connectors
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
