Product Information

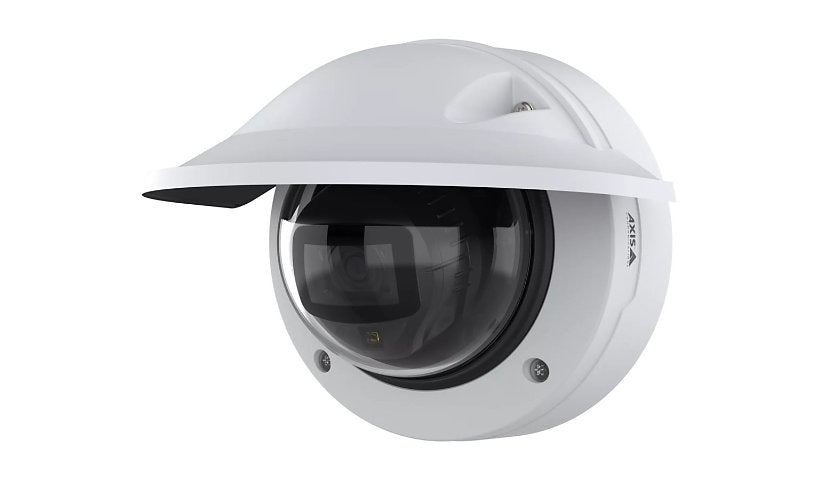

The AXIS P3278-LVE is a 4K (8 MP) outdoor dome camera with a 1/1.8 inch sensor and 4.4 to 14.6 mm varifocal lens. Lightfinder 2.0 and OptimizedIR up to 131 ft help at night, and it runs AXIS Object Analytics with a mic input and alarm I/O. Power is PoE+ Class 3, rated -40 to 50 C, vandal and weatherproof. TAA compliant.
Key Features
- 4K, 8 MP
- 4.4 to 14.6 mm varifocal
- Lightfinder 2.0, IR 131 ft
- Object Analytics
- PoE+, -40 to 50 C
- TAA compliant
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS P32 Series
Model: P3278-LVE
Packaged Quantity: 1
Country: Argentina, Australia, Brazil, China, Europe, India, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Encryption: TLS 1.2, TLS 1.3
Features: 180° image rotation, 270° image rotation, 90° image rotation, Adaptive Bitrate (ABR), Axis device ID, Axis Edge Vault, Brightness control, Brute force delay protection, Centralized certificate management, Compression, Contrast control, Corridor mode, Day/night threshold, Deep learning processing unit (DLPU), Defogging, Digest authentication, Digital PTZ function, Distortion correction function, Dynamic text, Exposure zone, Forensic WDR, HTTPs encryption, Image mirror, Image overlay, IP address filtering, IR Corrected lens, Lightfinder 2.0 technology, Memory card encryption, Multi-Bitrate (MBR), NAS-Ready, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, OptimizedIR, Password protection, Pixel Counter Support, Privacy Mask Function, Remote focus, Remote zoom, Saturation control, Secure Boot, Secure keystore, Sharpness control, Signed video, Up to 7 individually cropped out view areas, VAPIX support, Variable Bit Rate (VBR), Vehicle Detection, Video streaming indicator, White balance, Zipstream technology
Software Type: AXIS Object Analytics, AXIS Video Motion Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SIP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Ports: Audio line-in/microphone - 3.5 mm jack, Digital input/output - terminal block, LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (H, Max, Degree): 103
Angular Field of View (V, Max, Degree): 56
Infrared Distance: 131 ft
Infrared LEDs: Yes
Auto Iris Control: P-Iris
Max Focal Length: 14.6 millimetre
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Tilt: -50 to +80
Motion Detection: Yes
Panning Range (degree): -190 to +190
Angular Field of View (V, Min, Degree): 17
Camera Iris: Auto iris
Min Focus Distance: 3.3 ft
Minimum Illumination: 0 lux - IR, 0.03 lux - B&W - F1.65 - 50 IRE, 0.11 lux - color - F1.65 - 50 IRE
Total Pixels: 8,000,000 pixels
Image Sensor Size: 1/1.8"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/1.65-3.65
Min Focal Length: 4.4 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 2560 x 1600, 2592 x 1944
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/66500 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Vari-focal
Video Input: Color
Audio Support: Yes
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal / weatherproof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 6.1 inch
Width: 5.9 inch
Depth: 5.9 inch
Weight: 29.98 ounce
Included Items
Included Accessories: Cable gaskets, Connector guard, Terminal block connectors, Weathershield
