Product Information

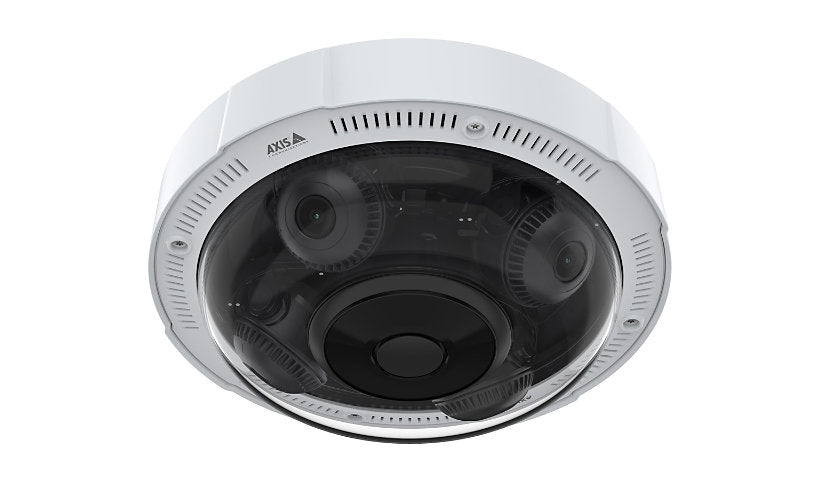

The AXIS P3737-PLE is an outdoor multisensor panoramic camera with four 5 MP sensors, each at 20 fps full resolution or 2560 x 1440 at 25/30 fps, with 3.2 to 8.1 mm varifocal lenses. It has 360 degree IR with individually controlled LEDs up to 49 ft, deep learning analytics, Forensic WDR and AXIS Edge Vault over Gigabit Ethernet. Tamper resistant and weatherproof.
Key Features
- Four 5 MP sensors
- 3.2 to 8.1 mm varifocal
- 360 degree IR, 49 ft
- Deep learning analytics
- Edge Vault security
- Weatherproof, tamper resistant
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS P37 Series
Model: P3737-PLE
Packaged Quantity: 1
Country: Argentina, Australia, Brazil, China, Europe, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Encryption: TLS 1.2, TLS 1.3
Features: 2D Noise Reduction Technology, 3D Noise Reduction Technology, Adaptive Bitrate (ABR), Axis device ID, Axis Edge Vault, Barrel distortion correction, Brute force delay protection, Day/night threshold, Deep learning processing unit (DLPU), Digest authentication, Dynamic text, Forensic WDR, Image overlay, Infrared-cut filter, IP address filtering, IR Corrected lens, Lightfinder technology, Low latency mode, Multi-Bitrate (MBR), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, OptimizedIR, Password protection, Pixel Counter Support, Polygon privacy mask, Privacy Mask Function, Remote focus, Remote zoom, Scene metadata, Secure Boot, Secure keystore, Signed firmware, Signed video, Text overlay, Tone mapping, Variable Bit Rate (VBR), Video streaming indicator, Zipstream technology
Software Type: AXIS Object Analytics, AXIS Video Motion Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCPv4, DHCPv6, DNS, DNSv6, FTP, HTTP, HTTP/2, HTTPS, ICMP, ICMPv4, ICMPv6, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP, TLS, UDP, UPnP, USGv6, Zeroconf
Ports: LAN - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (D, Max, Degree): 134
Angular Field of View (H, Max, Degree): 99
Angular Field of View (V, Max, Degree): 70
Infrared Distance: 49 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 47
Max Focal Length: 8.1 millimetre
Optical Zoom: 2.5
Video Capture: 2560 x 1440 @ 25/30 fps, 2592 x 1944 @ 20 fps
Tilt: 25 to 95
Motion Detection: Yes
Panning Range (degree): -90 to +90
Angular Field of View (H, Min, Degree): 37
Angular Field of View (V, Min, Degree): 28
Camera Iris: Fixed iris
Min Focus Distance: 1.6 ft
Minimum Illumination: 0 lux - B&W - F1.9 - 50 IRE, 0 lux - IR, 0.19 lux - color - F1.9 - 50 IRE
Total Pixels: 4 x 5,000,000 pixels
Image Sensor Size: 4 x 1/2.7"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/1.9-3.2
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 4 x 9.4 mm (1/2.7")
Digital Video Capture Resolution: 2560 x 1440, 2592 x 1944, 320 x 180, 320 x 240
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/50000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Vari-focal
Video Formats: AVC, H.264B, H.264H, H.264M, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2
Video Input: Color
Audio Support: Yes
Audio Support Features: Speaker pairing, Two-way audio via optional audio and I/O interface
Touchscreen: No
Max Video Resolution: 2592 x 1944
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Tamper-resistant / weatherproof
Form Factor: Dome
Camera Mechanical Design: Multi-sensor
Dimensions and Weight
Height: 3.6 inch
Width: 10 inch
Depth: 10 inch
Weight: 4.41 lbs
Included Items
Included Accessories: Cable gaskets, Connector guard
