Product Information

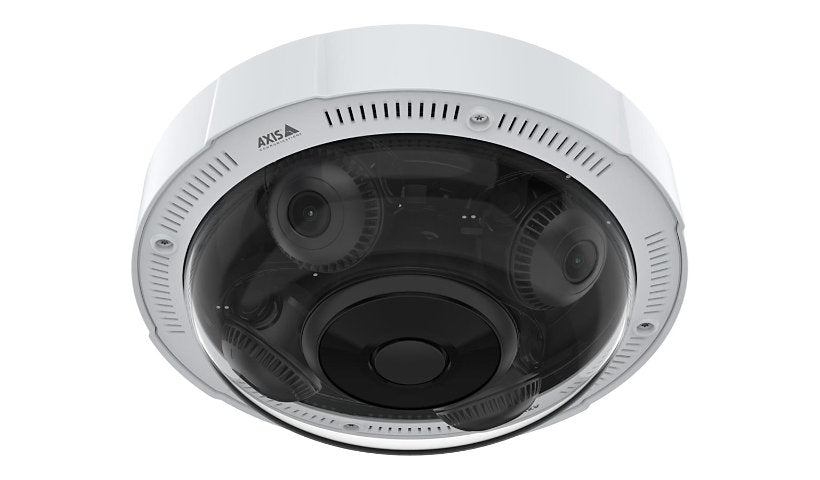

The AXIS P3738-PLE is an outdoor four sensor panoramic camera recording up to 3840 x 2160 at 15 fps through 3.2 to 8.1 mm varifocal lenses. It has 360 degree IR with individually controlled LEDs up to 49 ft, two way audio, deep learning analytics, FIPS 140-2 Level 2 and AXIS Edge Vault. Vandal and weatherproof. The pixel field lists 4 x 2 MP while the name says 8MP, please confirm.
Key Features
- Four sensor panoramic
- Up to 3840 x 2160 at 15 fps
- 3.2 to 8.1 mm varifocal
- 360 degree IR, 49 ft
- FIPS 140-2 L2, Edge Vault
- Vandal and weatherproof
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS P37 Series
Model: P3738-PLE
Packaged Quantity: 1
Country: Argentina, Australia, Brazil, China, European Union, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Encryption: 256-bit AES-XTS, EAP-TLS, FIPS 140-2 Level 2, TLS 1.2, TLS 1.3
Features: 180° image rotation, 270° image rotation, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), 90° image rotation, Adaptive Bitrate (ABR), Aluminum housing, Barrel distortion correction, Brightness control, Compression, Contrast control, CorridorView, Day/night threshold, Deep learning processing unit (DLPU), Dynamic text overlay, Exposure mode, Exposure zone, Forensic WDR, Full duplex audio, Half duplex audio, Image mirror, Image overlay, Infrared-cut filter, IR Corrected lens, Lightfinder technology, Low latency mode, Multi-Bitrate (MBR), NAS-Ready, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, OptimizedIR, Plastic housing, Polycarbonate bubble, Polygon privacy mask, Privacy Mask Function, Remote focus, Remote zoom, Saturation control, Secure Boot, Secure keystore, Sharpness control, Signed video, Text overlay, Tone mapping, TPM 2.0 module, Variable Bit Rate (VBR), Video streaming indicator, White balance, Zipstream technology
Software Type: AXIS Object Analytics, AXIS Video Motion Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCPv4, DHCPv6, DNS, DNSv6, FTP, HTTP, HTTPS, ICMP, ICMPv4, ICMPv6, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MDNS, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (D, Max, Degree): 131
Angular Field of View (H, Max, Degree): 108
Angular Field of View (V, Max, Degree): 55
Infrared Distance: 49 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 46
Max Focal Length: 8.1 millimetre
Optical Zoom: 2.5
Tilt: 25 to 95
Motion Detection: Yes
Panning Range (degree): -90 to +90
Angular Field of View (H, Min, Degree): 40
Angular Field of View (V, Min, Degree): 23
Camera Iris: Fixed iris
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - F1.9 - 50 IRE, 0 lux - IR, 0.19 lux - color - F1.9 - 50 IRE
Total Pixels: 4 x 2,000,000 pixels
Image Sensor Size: 4 x 1/2.8"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/1.9-3.2
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 4 x 9.1 mm (1/2.8")
Digital Video Capture Resolution: 320 x 180, 3840 x 2160
Max Frame Rate: 15 frames per second
Shutter Speed (Max): 1/16000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Vari-focal
Video Formats: AVC, H.264, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2
Video Input: Color
Audio Support: Yes
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 100% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal / weatherproof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.6 inch
Width: 10 inch
Depth: 10 inch
Weight: 4.41 lbs
Included Items
Included Accessories: Cable gaskets, Connector guard
