Product Information

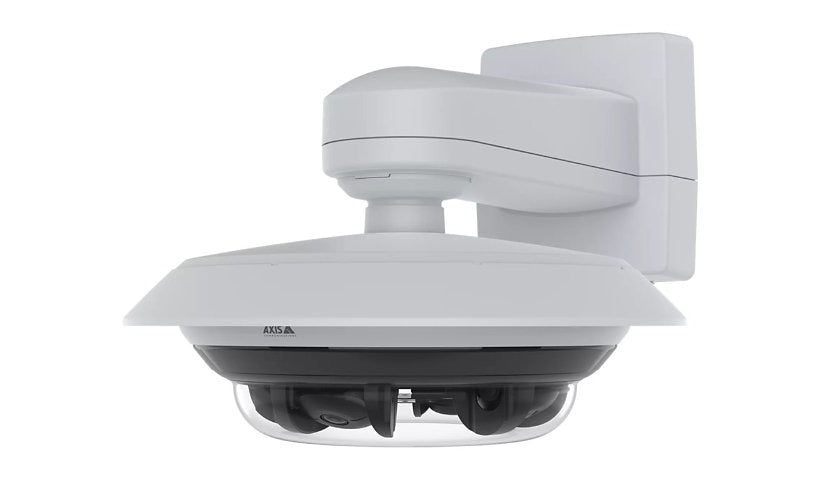

The AXIS P3747-PLVE is an outdoor multisensor dome with four 5 MP sensors (2592 x 1944 each at 30 fps) and 3.18 to 7.42 mm varifocal lenses. It has IR, AXIS Object Analytics with clothes color detection and crossing counter, and two way audio with speaker pairing, on PoE+ Class 4. Vandal and weatherproof. TAA compliant.
Key Features
- Four 5 MP sensors
- 3.18 to 7.42 mm varifocal
- IR illumination
- AXIS Object Analytics
- PoE+ Class 4
- TAA compliant
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS P37 Series
Model: P3747-PLVE
Packaged Quantity: 1
Country: Argentina, Australia, Brazil, China, Europe, India, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Encryption: 256-bit AES-XTS, EAP-TLS, FIPS 140-2 Level 2, TLS 1.2, TLS 1.3
Features: 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), Adaptive Bitrate (ABR), Barrel distortion correction, Brightness control, Clothes color detection, Compression, Contrast control, Crossing counter, Day/night threshold, Deep learning processing unit (DLPU), Dynamic text overlay, Exposure mode, Exposure zone, Face Capture, Forensic WDR, Human classification, Image overlay, Infrared-cut filter, IR Corrected lens, Level grid, License plate detection, Lightfighter technology, Line Crossing Detection, Local contrast control, Multi-Bitrate (MBR), Object in area, Occupancy counting, ONVIF support, OptimizedIR, Perspective configuration, Pixel Counter Support, Polygon privacy mask, Privacy Mask Function, Remote focus, Remote zoom, Saturation control, Sharpness control, Text overlay, Time in area, Tone mapping, Variable Bit Rate (VBR), Vehicle classification, Vehicle color recognition, White balance, Zipstream technology
Software Type: AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCPv4, DHCPv6, DNS, DNSv6, FTP, HTTP, HTTPS, ICMP, ICMPv4, ICMPv6, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MDNS, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (H, Max, Degree): 90
Angular Field of View (V, Max, Degree): 71.5
Infrared LEDs: Yes
Max Focal Length: 7.42 millimetre
Tilt: -23 to 150
Motion Detection: Yes
Panning Range (degree): -180 to +180
Angular Field of View (H, Min, Degree): 40
Angular Field of View (V, Min, Degree): 30
Camera Iris: Fixed iris
Lens Mount: M20 mount
Min Focus Distance: 5 ft
Minimum Illumination: 0 lux - B&W - F1.6 - 50 IRE, 0.15 lux - color - F1.6 - 50 IRE
Total Pixels: 4 x 5,000,000 pixels
Image Sensor Size: 4 x 1/2.78"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/1.6-2.7
Min Focal Length: 3.18 millimetre
Sensor Size (metric): 4 x 7.4 mm (1/2.78")
Digital Video Capture Resolution: 2592 x 1944, 640 x 480
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/19500 second (time unit)
Shutter Speed (Min): 1 second (time unit)
Focal Length Control: Vari-focal
Video Formats: AVC, H.264, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2
Video Input: Color
Audio Support Features: Speaker pairing, Two-way audio capability
Touchscreen: No
Max Video Resolution: 2592 x 1944
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal / weatherproof
Form Factor: Dome
Camera Mechanical Design: Multi-sensor
Dimensions and Weight
Weight: 6.61 lbs
Included Items
Included Accessories: Cable gaskets, Connector guard, Dome cover, Mount plate
