Product Information

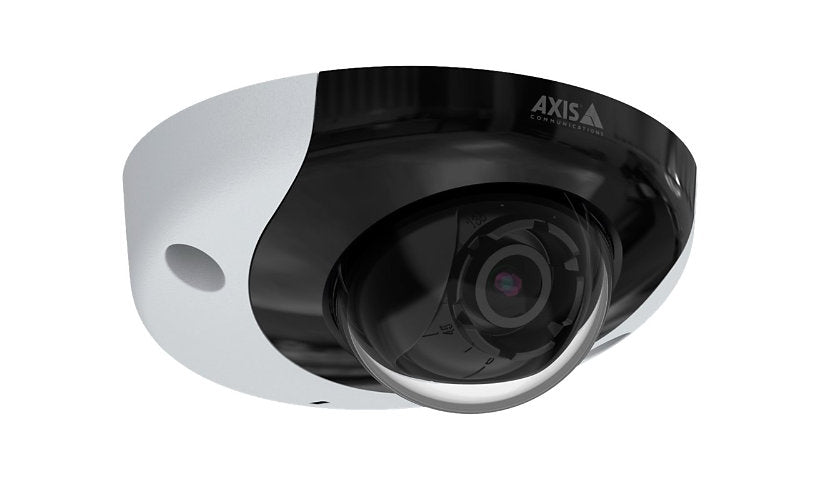

The AXIS P3935-LR is a 1080p dome built for onboard use in buses, trains and emergency vehicles, recording at up to 45 fps through a 2.8 mm lens with a 110 degree view. It has IR, a built in mic, electronic image stabilization, Forensic WDR and defog, and runs on PoE Class 2 through an RJ45 connector. Vandal proof.
Key Features
- 1080p up to 45 fps
- 2.8 mm, 110 degree view
- Built for vehicles
- IR, built in mic
- EIS, Forensic WDR
- PoE, vandal proof
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: P3935-LR
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Features: Adaptive Bitrate (ABR), Brightness control, Contrast control, Corridor mode, Defog, Digital PTZ function, Electronic image stabilization, Exposure control, Forensic WDR, Image mirror, Image overlay, Infrared-cut filter, Lightfinder technology, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Progressive scanning, Sharpness control, Variable Bit Rate (VBR), White balance, Zipstream technology
Software Type: Windows decoder 1-user license
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, CIFS, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, SRTP, SSH, SSL, TCP/IP, TLS, UDP/IP, UPnP, USGv6
Ports: Audio line-in/microphone, LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 1 GB
Flash Memory Installed: 512 megabyte
Technical Information
Infrared LEDs: Yes
Video Capture: 1280 x 960 @ 45 fps, 1920 x 1080 @ 30 fps
Tilt: 15 to 90
Motion Detection: Yes
Panning Range (degree): -30 to +30
Angular Field of View (H, Min, Degree): 110
Angular Field of View (V, Min, Degree): 62
Camera Iris: Fixed iris
Lens Mount: M12 mount
Minimum Illumination: 0 lux - IR, 0.01 lux - B&W - F1.6 - 30 IRE, 0.02 lux - B&W - F1.6 - 50 IRE, 0.06 lux - color - F1.6 - 30 IRE, 0.12 lux - color - F1.6 - 50 IRE
Image Sensor Size: 1/2.9"
Image Sensor Type: RGB CMOS
Lens Aperture: F/1.6
Min Focal Length: 2.8 millimetre
Sensor Size (metric): 8.8 mm (1/2.9")
Digital Video Capture Resolution: 1080 x 1920, 1280 x 960, 160 x 120, 160 x 90
Max Frame Rate: 45 frames per second
Shutter Speed (Max): 1/33500 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Fixed focal
Video Formats: AVC, H.264, H.265, HEVC, MJPEG, MPEG-4
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support Features: Built-in microphone
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Physical Characteristics
Protection: Vandal-proof
Camera Mechanical Design: Pan / tilt
Dimensions and Weight
Height: 1.9 inch
Width: 4.3 inch
Depth: 4.3 inch
Weight: 14.11 ounce
Included Items
Included Accessories: Drill hole template, Lens tool, Resistorx L-key
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
