Product Information

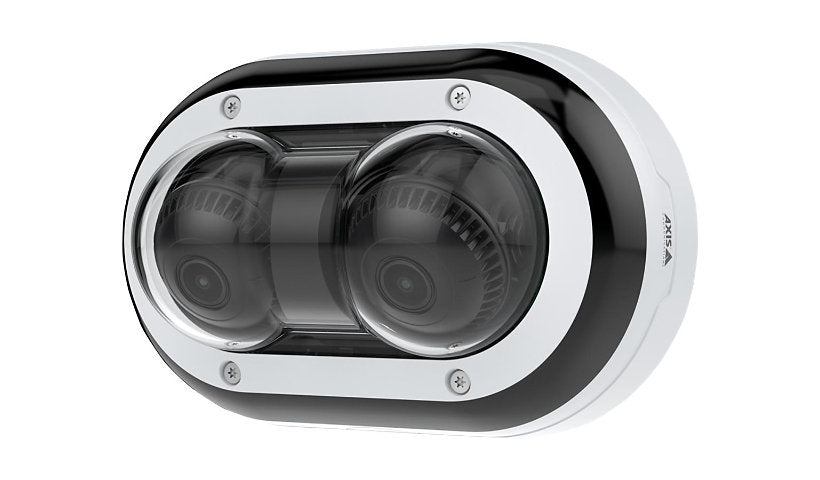

The AXIS P4705-PLVE is an outdoor dual sensor multidirectional dome with two 2 MP 1/1.8 inch sensors recording 1080p at up to 60 fps through 3.3 to 8.1 mm varifocal lenses. Built on ARTPEC-8 with deep learning, it has a built in mic, IR up to 49 ft and Gigabit PoE Class 4. Vandal and weatherproof, weathershield and bracket included.
Key Features
- Two 2 MP sensors
- 1080p up to 60 fps
- 3.3 to 8.1 mm varifocal
- ARTPEC-8, deep learning
- IR up to 49 ft, mic
- Gigabit PoE Class 4
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: P4705-PLVE
Packaged Quantity: 1
Localization: Chinese (Simplified), Chinese (Traditional), English, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish
Network and Communication
Connectivity Technology: Wired
Features: -170° / +170° rotation, 180° image rotation, 270° image rotation, 360° field of view, 90° image rotation, Access Control, Adaptive Bitrate (ABR), Aluminum housing, Audio Detection, Auto gain control, Brightness control, Brute force delay protection, Centralized certificate management, Compression, Contrast control, Corridor mode, Day/night threshold, Deep learning processing unit (DLPU), Digest authentication, Dynamic text overlay, E-mail alerts, Exposure mode, Forensic WDR, HTTPs encryption, Image mirror, Image overlay, Infrared-cut filter, IP address filtering, IR Corrected lens, Lightfinder technology, Multi-Bitrate (MBR), NAS-Ready, Network speaker pairing, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, Pixel Counter Support, Plastic housing, Polygon privacy mask, Power over Ethernet, Programmable exposure zones, Progressive scanning, Remote focus, Remote zoom, Saturation control, Secure Boot, Secure keystore, Sharpness control, Signed firmware, Text overlay, Tone mapping, Trusted Platform Module (TPM), User access log, Variable Bit Rate (VBR), White balance, Zipstream technology
Software Type: AXIS Camera Station, AXIS Companion, AXIS Device Manager, AXIS Video Motion Detection, Windows decoder 1-user license
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Ports: LAN - RJ-45, Microphone - 3.5 mm jack
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (D, Max, Degree): 131
Angular Field of View (H, Max, Degree): 107
Angular Field of View (V, Max, Degree): 55
Infrared Distance: 49 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 45
Max Focal Length: 8.1 millimetre
Optical Zoom: 2.5
Tilt: -75 to +75
Motion Detection: Yes
Panning Range (degree): -110 to +110
Angular Field of View (H, Min, Degree): 39
Angular Field of View (V, Min, Degree): 22
Camera Iris: Fixed iris
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - F1.9 - 50 IRE, 0 lux - IR, 0.1 lux - color - F1.9 - 50 IRE
Total Pixels: 2 x 2,000,000 pixels
Image Sensor Size: 1/1.8"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/1.9-3.2
Min Focal Length: 3.3 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1920 x 1080, 640 x 360
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/20000 second (time unit)
Shutter Speed (Min): 1.5 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support Features: Built-in microphone, Two-way audio capability
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal / weatherproof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.5 inch
Width: 5.2 inch
Depth: 8.2 inch
Weight: 34.39 ounce
Included Items
Included Accessories: Connector guard, Connector kit, Mounting bracket, Weathershield
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
