Product Information

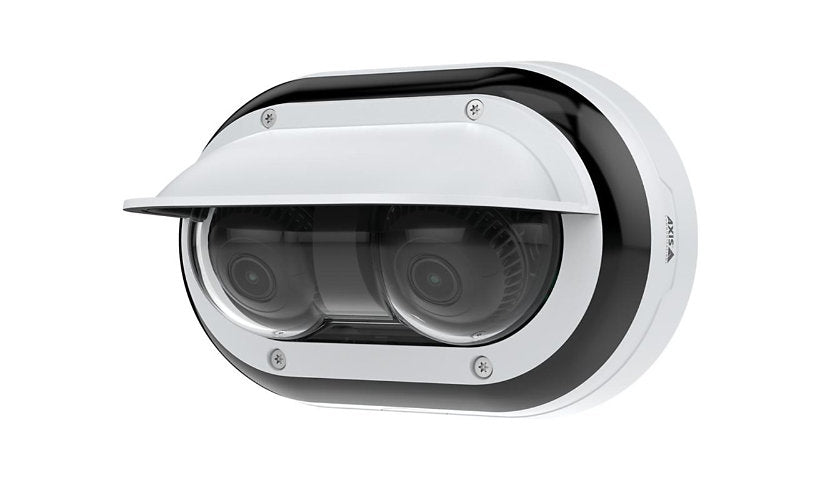

The AXIS P4708-PLVE is an outdoor dual sensor panoramic dome with two 8 MP sensors, each 3840 x 2160 at 30 fps, and 3.2 to 8.1 mm varifocal lenses. It has Forensic WDR, deep learning analytics, AXIS Edge Vault, two way audio support and IR up to 49 ft, running on Gigabit PoE+ Class 4. Vandal and weatherproof. TAA compliant.
Key Features
- Two 8 MP 4K sensors
- 3.2 to 8.1 mm varifocal
- Forensic WDR, deep learning
- IR up to 49 ft
- Gigabit PoE+ Class 4
- TAA compliant
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: P4708-PLVE
Packaged Quantity: 1
Country: Argentina, Australia, Brazil, China, Europe, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Encryption: TLS
Features: -170° / +170° rotation, 2D Noise Reduction Technology, 3D Noise Reduction Technology, Active tampering alarm, Adaptive Bitrate (ABR), Audio Detection, Axis Edge Vault, Brute force delay protection, Deep learning processing unit (DLPU), Digest authentication, Dynamic text, Forensic WDR, Image overlay, Infrared-cut filter, IR Corrected lens, Level grid, Lightfinder technology, Low latency mode, Multi-Bitrate (MBR), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, OptimizedIR, Pixel Counter Support, Polygon privacy mask, Remote focus, Remote zoom, Signed firmware, Spectrum visualizer, Variable Bit Rate (VBR), Video streaming indicator, Voice enhancement, Zipstream technology
Software Type: AXIS Object Analytics, AXIS Video Motion Detection, Windows decoder 1-user license
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCPv4, DHCPv6, DNS, DNSv6, FTP, HTTP, HTTP/2, HTTPS, ICMP, ICMPv4, ICMPv6, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP, UDP, UPnP, USGv6, Zeroconf
Ports: Audio line-in/microphone - 3.5 mm jack, LAN - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (D, Max, Degree): 131
Angular Field of View (H, Max, Degree): 108
Angular Field of View (V, Max, Degree): 55
Infrared Distance: 49 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 46
Max Focal Length: 8.1 millimetre
Optical Zoom: 2.5
Tilt: -75 to +75
Motion Detection: Yes
Panning Range (degree): -110 to +110
Angular Field of View (H, Min, Degree): 40
Angular Field of View (V, Min, Degree): 23
Camera Iris: Fixed iris
Min Focus Distance: 1.6 ft
Minimum Illumination: 0 lux - B&W - F1.9 - 50 IRE, 0 lux - IR, 0.19 lux - color - F1.9 - 50 IRE
Total Pixels: 2 x 8,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/1.9-3.2
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 3840 x 2160, 640 x 360
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/16000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264B, H.264H, H.264M, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support Features: Speaker pairing, Two-way audio via edge-to-edge technology
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal / weatherproof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 5.2 inch
Width: 8.2 inch
Depth: 5 inch
Weight: 34.39 ounce
Included Items
Included Accessories: Cable gaskets, Connector guard, Connector kit, Weathershield
