Product Information

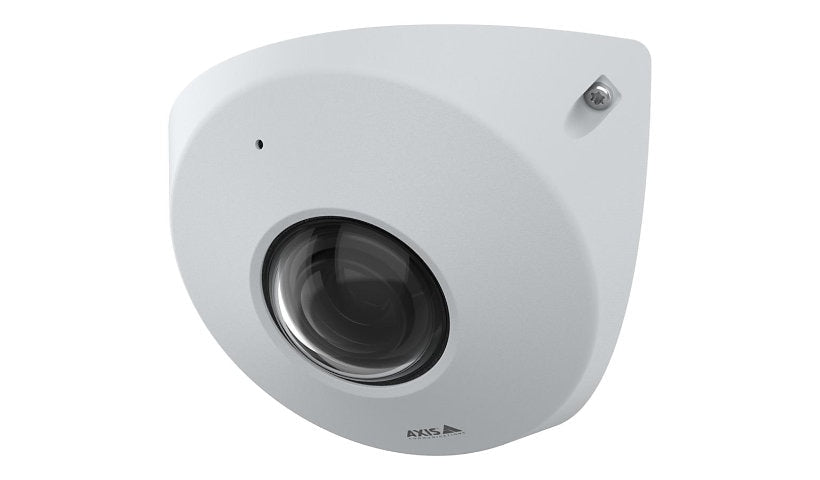

The AXIS P9117-PV is a 6 MP indoor panoramic dome recording 2160 x 2160 at up to 60 fps through a 1.1 mm lens. It has a built in mic with two way audio and speaker pairing, AXIS Audio Analytics, AXIS Object Analytics and Axis Edge Vault. Dust and vandal resistant. TAA compliant.
Key Features
- 6 MP, 2160 x 2160
- Panoramic overview
- Mic, speaker pairing
- Audio Analytics
- AXIS Object Analytics
- TAA compliant
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS P91 Series
Model: P9117-PV
Packaged Quantity: 1
Country: Argentina, Australia, Brazil, China, Europe, India, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Encryption: 256-bit AES-XTS-Plain64, TLS 1.2, TLS 1.3
Features: 1:1 aspect ratio, 16:9 aspect ratio, 2D Noise Reduction Technology, 3D Noise Reduction Technology, 4:3 aspect ratio, Adaptive Bitrate (ABR), Audio Detection, Auto gain control, Axis device ID, Axis Edge Vault, Brute force delay protection, Day/night threshold, Deep learning processing unit (DLPU), Digest authentication, Digital PTZ function, Digital roll, Dynamic text, Exposure mode, Forensic WDR, Guard tour, Image mirror, Image overlay, Infrared-cut filter, IR Corrected lens, Level grid, Lightfinder 2.0 technology, Memory card encryption, Metadata, Multi-Bitrate (MBR), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, Pixel Counter Support, Polygon privacy mask, Secure Boot, Secure keystore, Signed firmware, Signed video, Stereographic lens, Variable Bit Rate (VBR), Video streaming indicator, White balance, Zipstream technology
Software Type: AXIS Audio Analytics, AXIS Object Analytics, AXIS Video Motion Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: Bonjour, CDP, CIFS, DDNS, DHCPv4, DHCPv6, DNS, DNSv6, FTP, HTTP, HTTP/2, HTTPS, ICMPv4, ICMPv6, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, SFTP, SIP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP, UDP, UPnP, USGv6, Zeroconf
Ports: LAN - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Technical Information
Focus Modes: Fixed focus
Motion Detection: Yes
Camera Iris: Fixed iris
Minimum Illumination: 0.04 lux - B&W - F2.2 - 50 IRE, 0.17 lux - color - F2.2 - 50 IRE
Total Pixels: 6,000,000 pixels
Image Sensor Size: 1/1.8"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/2.2
Min Focal Length: 1.1 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 160 x 160, 2048 x 1152, 2048 x 1536, 2160 x 2160, 256 x 144, 320 x 240
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/33500 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Fixed focal
Video Formats: AVC, H.264B, H.264H, H.264M, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support Features: Built-in microphone, Speaker pairing, Two-way audio capability
Touchscreen: No
Max Video Resolution: 2160 x 2160
Min Operating Temperature: 5 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 85% RH (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor
Protection: Dust resistant / vandal resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.6 inch
Width: 5.7 inch
Depth: 4.8 inch
Weight: 26.81 ounce
Included Items
Included Accessories: Cable gasket, Owner authentication key, RJ-45 tool mounting, Screw gaskets
