Product Information

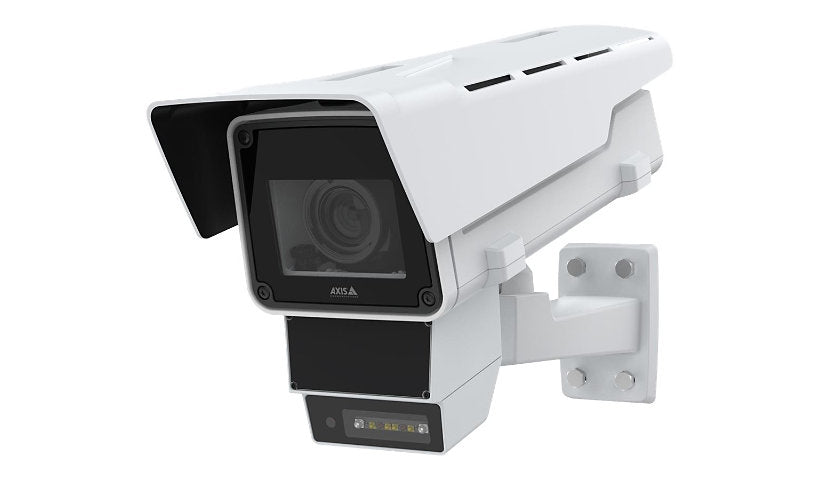

The AXIS Q1656-DLE combines video and radar in one outdoor box camera for wide area intrusion protection, with deep learning object classification. It records 2688 x 1512 at up to 60 fps through a 3.9 to 10 mm i-CS autofocus lens, with IR up to 125 ft, two way audio, RS-485/422 and AXIS Speed Monitor, on PoE+ Class 4. Wall mount and sunshield included.
Key Features
- Radar and video fusion
- 4 MP, up to 60 fps
- 3.9 to 10 mm, i-CS
- IR up to 125 ft
- AXIS Speed Monitor
- Wall mount, sunshield
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: Q1656-DLE
Packaged Quantity: 1
Country: Australia, European Union, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Features: Access Control, Adaptive Bitrate (ABR), Audio Noise Reduction, Auto gain control, Axis device ID, Axis Edge Vault, AXIS Object Analytics, Brightness control, Brute force delay protection, Built-in LED illuminator, Centralized certificate management, Compression, Contrast control, Cross Line Detection, Day/night threshold, Deep learning processing unit (DLPU), Defogging, Digest authentication, Dynamic text, Electronic image stabilization, Exposure mode, Exposure zone, Forensic WDR, Frequency Modulated Continuous Wave (FMCW) radar sensor, Full duplex audio, Heater, HTTPs encryption, Image overlay, Infrared-cut filter, IP address filtering, IR Corrected lens, Lightfinder 2.0 technology, Low latency mode, Memory card encryption, Multi-Bitrate (MBR), Object classification, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, OptimizedIR, Password protection, Person Detection, Pixel Counter Support, Polygon privacy mask, Remote Back Focus, Remote focus, Remote zoom, Saturation control, Secure Boot, Secure keystore, Signed firmware, Signed video, Speed detection, Tone mapping, User access log, VAPIX support, Variable Bit Rate (VBR), Vehicle Detection, Video streaming indicator, White balance, Zipstream technology
Software Type: AXIS Object Analytics, AXIS Speed Monitor, AXIS Video Motion Detection, Windows decoder 1-user license
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6
Ports: Audio line out - 3.5 mm jack, Audio line-in/microphone - 3.5 mm jack, LAN/power - RJ-45, Serial RS-485/RS-422 - terminal block
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (H, Max, Degree): 96
Angular Field of View (V, Max, Degree): 63
Focus Modes: Automatic
Infrared Distance: 125 ft
Infrared LEDs: Yes
Auto Iris Control: P-Iris
Max Focal Length: 10 millimetre
Optical Zoom: 2.5
Control Interface: RS-422, RS-485
Video Capture: 2688 x 1512 @ 30 fps, 2688 x 1512, WDR off @ 60 fps
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 44
Angular Field of View (V, Min, Degree): 26
Lens Mount: I-CS-mount
Min Focus Distance: 1.6 ft
Minimum Illumination: 0 lux - IR, 0.01 lux - B&W, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE, 0.02 lux - B&W, Lightfinder 2.0 - F1.5 - 50 IRE, 0.05 lux - color, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE, 0.1 lux - color, Lightfinder 2.0 - F1.5 - 50 IRE
Total Pixels: 4,000,000 pixels
Image Sensor Size: 1/1.8"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/1.5
Min Focal Length: 3.9 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 160 x 120, 160 x 90, 2016 x 1512, 2688 x 1512
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/47500 second (time unit)
Shutter Speed (Min): 1 second (time unit)
Focal Length Control: Vari-focal
Video Formats: AVC, H.264B, H.264H, H.264M, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 2688 x 1512
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Weather resistant / impact resistant
Form Factor: Box
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 9.2 inch
Width: 6.3 inch
Depth: 15.9 inch
Weight: 11.02 lbs
Included Items
Included Accessories: AXIS T94Q01A Wall Mount, Connector kit, Resistorx T20 tool, Sunshield
