Product Information

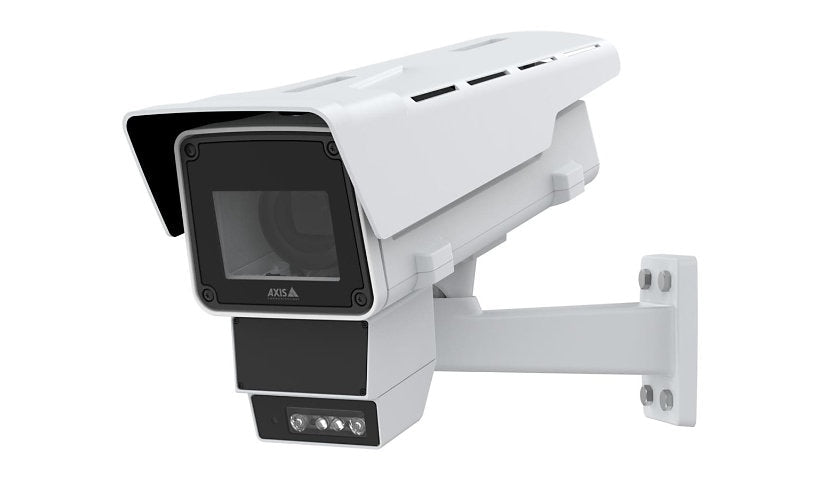

The AXIS Q1686-DLE (02968-001) is a 4 MP outdoor bullet recording 2688 x 1512 at up to 60 fps with a 1/1.8 inch sensor and IR reaching 164 ft. It includes AXIS Radar Integration, Speed Monitor, Object Analytics and Scene Metadata on a deep learning unit, plus two way audio. Vandal and weatherproof, on PoE Class 4, with a wall mount kit and weathershield.
Key Features
- 4 MP, up to 60 fps
- IR up to 164 ft
- AXIS Radar Integration
- AXIS Speed Monitor
- Two way audio
- Wall mount, PoE
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: Q1686-DLE
Packaged Quantity: 1
Country: Australia, Europe, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Features: 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), Aluminum housing, Augmented overlay, Brightness control, Compression, Contrast control, Deep learning processing unit (DLPU), Defogging, Dynamic text, Exposure mode, Exposure zone, Forensic WDR, I-CS lens, Image overlay, License plate detection, Lightfinder 2.0 technology, Polygon privacy mask, Radar picture-in-picture, Radar sensor, Remote focus, Remote zoom, Saturation control, Secure Boot, Sharpness control, Target aperture, Tone mapping, Vehicle speed detection, White balance, Zipstream technology
Software Type: AXIS Object Analytics, AXIS Radar Integration, AXIS Scene Metadata, AXIS Speed Monitor, AXIS Video Motion Detection
Connectivity
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MDNS, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SIP, SMB, SMTP, SNMP, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Ports: Audio line-in/microphone - 3.5 mm jack, LAN - RJ-45, LAN/power - terminal block
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
Technical Information
Angular Field of View (H, Max, Degree): 46.22
Infrared Distance: 164 ft
Infrared LEDs: Yes
Angular Field of View (H, Min, Degree): 9.16
Minimum Illumination: 0 lux - IR, 0.01 lux - B&W, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE, 0.02 lux - B&W, Lightfinder 2.0 - F1.5 - 50 IRE, 0.05 lux - color, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE, 0.1 lux - color, Lightfinder 2.0 - F1.5 - 50 IRE
Total Pixels: 4,000,000 pixels
Image Sensor Size: 1/1.8"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/1.5
Min Focal Length: 9 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1280 x 800, 160 x 100, 160 x 120, 160 x90, 2016 x 1512, 2688 x 1512
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/47500 second (time unit)
Shutter Speed (Min): 1 second (time unit)
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 2688 x 1512
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Protection: Vandal / weatherproof
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.7 inch
Width: 6.3 inch
Depth: 15.9 inch
Weight: 11.24 lbs
Included Items
Included Accessories: Cable gasket, Connector guard, Owner authentication key, RESISTORX T20 screw bit, Terminal block connectors, Wall mount kit, Weathershield
