Product Information

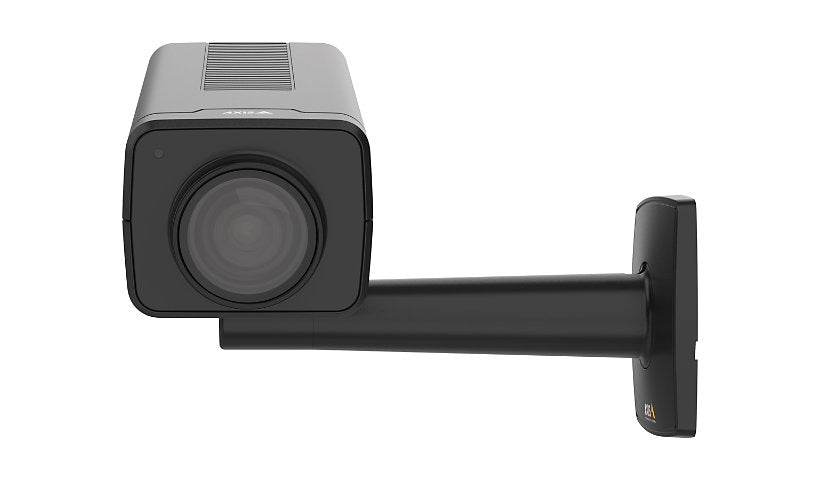

The AXIS Q1715 (02220-001) is a block camera that records 1080p at up to 60 fps with a 4 to 84.6 mm lens for 21x optical zoom. It has HDMI and HD-SDI outputs next to the network stream, two way audio, RS-485/RS-422, AXIS Object Analytics and PoE+ power, and comes with a stand.
Key Features
- 1080p at 60 fps
- 21x, 4 to 84.6 mm
- HDMI and HD-SDI out
- Two way audio
- AXIS Object Analytics
- PoE+, stand included
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: Q1715
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Features: 180° image rotation, 270° image rotation, 90° image rotation, Adaptive Bitrate (ABR), Audio Detection, Audio Noise Reduction, AXIS Object Analytics, Brightness control, Brute force delay protection, Constant Bit Rate (CBR), Contrast control, Corridor mode, Defog, Digital PTZ function, Distortion correction function, Electronic image stabilization, Exposure control, Exposure zone, Forensic WDR, Heater, Image mirror, Image overlay, Infrared-cut filter, IP address filtering, Lightfinder 2.0 technology, Line Crossing Detection, Multi-streaming, Notification picture to E-mail, Notification picture to FTP, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, Pelco Protocol, Polygon privacy mask, Remote Back Focus, Remote focus, Saturation control, Secure Boot, Signed firmware, Text overlay, TPM 2.0 module, Variable Bit Rate (VBR), White balance, Zipstream technology
Software Type: Windows decoder 1-user license
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, CIFS, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, SRTP, SSH, TCP/IP, TLS, UDP/IP, UPnP, USGv6
Ports: Audio line out - 3.5 mm jack, Audio line-in/microphone - 3.5 mm jack, HD-SDI - BNC, HDMI, LAN/power - RJ-45, Serial RS-485/RS-422 - terminal block
Memory and Processor
Memory Cards Supported: SD Memory Card
RAM Installed: 2 GB
Flash Memory Installed: 1 GB
Technical Information
Angular Field of View (H, Max, Degree): 76
Angular Field of View (V, Max, Degree): 42
Focus Modes: Automatic
Video Signals: HD-SDI, HDMI
Auto Iris Control: P-Iris
Max Focal Length: 84.6 millimetre
Optical Zoom: 21
Control Interface: RS-422, RS-485
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 3.6
Angular Field of View (V, Min, Degree): 2.2
Camera Iris: Auto iris
Minimum Illumination: 0.02 lux - B&W - F1.5 - 50 IRE, 0.1 lux - color - F1.5 - 50 IRE
Video Modes: 1080p
Image Sensor Size: 1/2.8"
Image Sensor Type: RGB CMOS
Lens Aperture: F/1.6-4.5
Min Focal Length: 4 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/66500 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264B, H.264H, H.264M, H.265, HEVC, MJPEG, MPEG-4 AVC, MPEG-4 Part 10, MPEG-H Part 2
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support Features: Two-way audio capability
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 85% (non-condensing)
Physical Characteristics
Form Factor: Block
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.6 inch
Width: 3.1 inch
Depth: 7.7 inch
Weight: 22.93 ounce
Included Items
Included Accessories: Connector kit, Resistorx L-key, Stand, Torx T20 screw driver
