Product Information

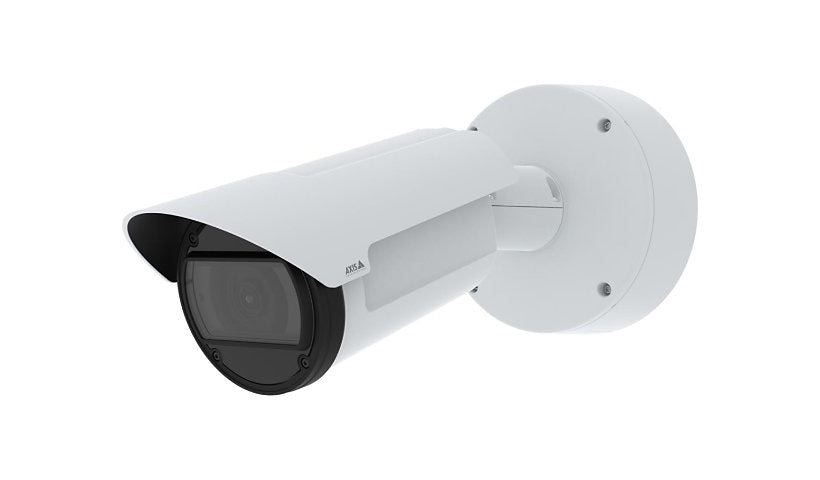

The AXIS Q1805-LE is a 2 MP outdoor bullet camera recording 1080p at up to 90 fps with a 4.3 to 138 mm lens giving 32x optical zoom. It has OptimizedIR up to 328 ft, electronic image stabilization, deep learning analytics, AXIS Edge Vault and a PoE output port for another device. Weather and impact resistant.
Key Features
- 1080p up to 90 fps
- 32x optical zoom
- IR up to 328 ft
- Image stabilization
- Deep learning, Edge Vault
- PoE out port
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS Q18 Series
Model: Q1805-LE
Packaged Quantity: 1
Country: Argentina, Australia, Brazil, China, European Union, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Encryption: EAP-TLS, FIPS 140-2 Level 2, TLS
Features: -90° / +270° rotation, 20 video streams, 55 dB signal-to-noise ratio, 802.1x authentication, 850nm illuminator, Adaptive Bitrate (ABR), Adjustable zoom speed, Aluminum enclosure, Auto gain control, Axis Edge Vault, Barrel distortion correction, Brightness control, Compression, Contrast control, Control queue, Corridor mode, Day/night threshold, Deep learning processing unit (DLPU), Defogging, Digital PTZ function, DORI coverage, Dynamic text overlay, Electronic Image Stabilizer (EIS), Exposure mode, Exposure zone, Face Detection, Forensic WDR, Guard tour, Human Detection, Image mirror, Image overlay, Infrared-cut filter, License plate detection, Lightfinder 2.0 technology, Local contrast control, Low latency mode, Multi-Bitrate (MBR), Object Detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, OptimizedIR, PoE Support, Polygon privacy mask, Remote focus, Remote zoom, Removable IR filter, Rotation mode, Saturation control, Secure Boot, Sharpness control, Tampering alarm, Text overlay, Tone mapping, Tour recording, Up to 8 view areas, Variable Bit Rate (VBR), Vehicle Detection, Video streaming indicator, White balance, Zipstream technology
Software Type: AXIS Live Privacy Shield, AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: Bonjour, CDP, CIFS, DDNS, DHCPv4, DHCPv6, DNS, FTP, HTTP, HTTP/2, HTTPS, ICMPv4, ICMPv6, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MDNS, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP, TLS, UDP, UPnP, USGv6
Ports: 4-pin 2.5 mm - terminal block, Audio line-in/microphone - 3.5 mm jack, LAN - RJ-45, LAN (PoE output) - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (H, Max, Degree): 60
Angular Field of View (V, Max, Degree): 39
Focus Modes: Semi-auto
Infrared Distance: 328 ft
Infrared LEDs: Yes
Auto Iris Control: P-Iris
Max Focal Length: 138 millimetre
Optical Zoom: 32
Tilt: 0 to -90
Motion Detection: Yes
Panning Range (degree): -180 to +180
Angular Field of View (H, Min, Degree): 2.3
Angular Field of View (V, Min, Degree): 1.3
Camera Iris: Auto iris
Min Focus Distance: 4 ft
Minimum Illumination: 0 lux - IR, 0.01 lux - B&W - F1.4 - 50 IRE, 0.06 lux - color - F1.4 - 50 IRE
Total Pixels: 2,000,000 pixels
Video Modes: 1080p
Image Sensor Size: 1/2.8"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/1.4-4.0
Min Focal Length: 4.3 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1920 x 1080
Max Frame Rate: 90 frames per second
Shutter Speed (Max): 1/37000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support Features: 10-band graphic equalizer, Microphone pairing, Speaker pairing
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Weather resistant / impact resistant
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 7.2 inch
Width: 7.2 inch
Depth: 16.2 inch
Weight: 7.05 lbs
Included Items
Included Accessories: Cable gaskets, Connector guard, Owner authentication key, Terminal block connector
Cables: 1 x network cable - external
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
