Product Information

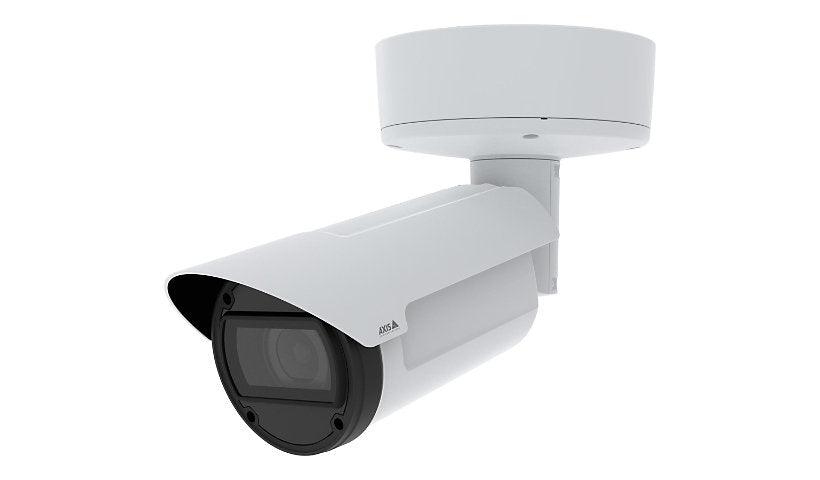

The AXIS Q1808-LE (02508-001) is a 10 MP outdoor bullet with a 4/3 inch sensor and a 50 to 150 mm lens, recording up to 3712 x 2784 at 60 fps with IR reaching 394 ft. It runs AXIS Object Analytics and Live Privacy Shield, has a PoE output port, audio in, microSD and AXIS Edge Vault, and runs on PoE Class 6 or DC/AC. TAA compliant.
Key Features
- 10 MP, up to 60 fps
- 50 to 150 mm, 3x
- 4/3 inch sensor
- IR up to 394 ft
- PoE output port
- Edge Vault, TAA
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS Q18 Series
Model: Q1808-LE
Packaged Quantity: 1
Country: Argentina, Australia, Brazil, China, European Union, India, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Encryption: TLS 1.2, TLS 1.3
Features: 20 video streams, 2D Noise Reduction Technology, 3D Noise Reduction Technology, Adaptive Bitrate (ABR), Adjustable zoom speed, Axis Edge Vault, AXIS Object Analytics, Brute force delay protection, Control queue, Deep learning processing unit (DLPU), Digest authentication, Digital PTZ function, Forensic WDR, Guard tour, Infrared-cut filter, Level grid, Leveling assistant, Lightfinder 2.0 technology, Low latency mode, Multi-Bitrate (MBR), On-screen directional indicator, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, OptimizedIR, Password protection, Pixel Counter Support, Polygon privacy mask, Remote focus, Remote zoom, Scene metadata, Signed firmware, Tour recording, TPM 2.0 module, VAPIX support, Variable Bit Rate (VBR), Video streaming indicator, Zipstream technology
Software Type: AXIS Live Privacy Shield, AXIS Object Analytics, AXIS Video Motion Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: Bonjour, CDP, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MDNS, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, SFTP, SMB, SMTP, SNMP, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Ports: 4-pin 2.5 mm - terminal block, Audio line-in/microphone - 3.5 mm jack, LAN - RJ-45, LAN (PoE output) - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (H, Max, Degree): 21
Angular Field of View (V, Max, Degree): 12
Infrared Distance: 394 ft
Infrared LEDs: Yes
Auto Iris Control: P-Iris
Max Focal Length: 150 millimetre
Optical Zoom: 3
Tilt: 0 to -90
Motion Detection: Yes
Panning Range (degree): -180 to +180
Angular Field of View (H, Min, Degree): 7
Angular Field of View (V, Min, Degree): 4
Camera Iris: Auto iris
Min Focus Distance: 16.4 ft
Minimum Illumination: 0 lux - IR, 0.02 lux - B&W - F4.0 - 50 IRE, 0.1 lux - color - F4.0 - 50 IRE
Total Pixels: 10,000,000 pixels
Video Modes: 4K
Image Sensor Size: 4/3"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/4.0
Min Focal Length: 50 millimetre
Sensor Size (metric): 33.9 mm (4/3")
Digital Video Capture Resolution: 1280 x 800, 160 x 100, 160 x 120, 160 x90, 3712 x 2784, 3840 x 2160
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/45500 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264B, H.264H, H.264M, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support Features: 10-band graphic equalizer, Microphone pairing, Speaker pairing
Touchscreen: No
Max Video Resolution: 3712 x 2784
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Weather resistant / impact resistant
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 7.2 inch
Width: 7.2 inch
Depth: 16.2 inch
Weight: 7.05 lbs
Included Items
Included Accessories: Cable gaskets, Connector guard, Owner authentication key, Terminal block connector
Cables: 1 x network cable - external
