Product Information

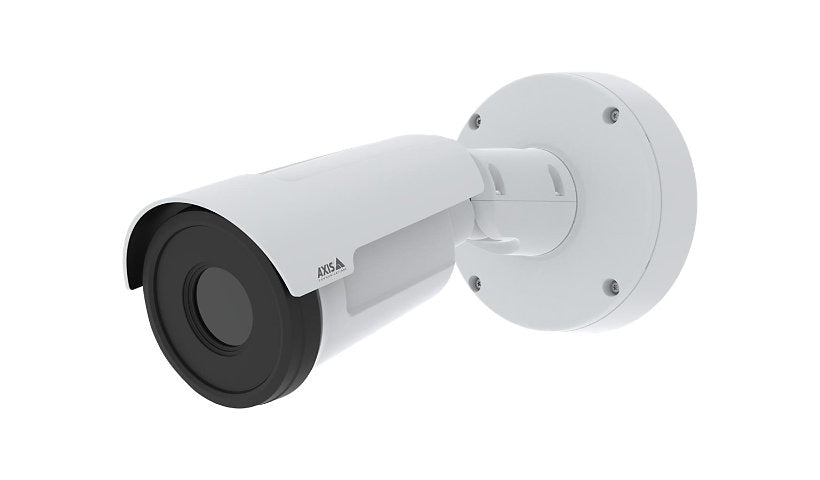

The AXIS Q1961-TE (02174-001) is an outdoor thermal camera with 768 x 576 resolution and a 7 mm lens (55 degrees), monitoring object temperatures from -40 to 350 C across up to 10 zones for early fire detection. It includes AXIS Fence Guard, Loitering Guard and Motion Guard, has 1 alarm in and 1 out, and an impact and corrosion resistant housing. TAA compliant.
Key Features
- 768 x 576 thermal
- Temperature monitoring
- 10 temperature zones
- 7 mm, 55 degrees
- Fence, Loitering Guard
- Impact resistant, TAA
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: Q1961-TE
Packaged Quantity: 1
Country: Argentina, Australia, China, European Union, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Features: -40 °C to 350 °C object temperature monitoring, 10 temperature zones detection, 180° image rotation, 270° image rotation, 8 - 14 µm spectral response, 90° image rotation, Active tampering alarm, Adaptive Bitrate (ABR), Audio Detection, Auto gain control, Axis device ID, Axis Edge Vault, Brightness control, Brute force delay protection, Compression, Contrast control, Corridor mode, Deep learning processing unit (DLPU), Digest authentication, Early warning fire prevention, Electronic image stabilization, Exposure zone, Half duplex audio, Image mirror, Image overlay, Isothermal palette, Memory card encryption, Multi-Bitrate (MBR), Multiple color palettes, Network speaker pairing, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, Pixel Counter Support, Polygon privacy mask, Secure Boot, Secure keystore, Sharpness control, Signed firmware, Signed video, Simplex audio, Spot temperature meter, Text overlay, Thermal sensitivity 40 mK (NETD), Trusted Platform Module (TPM), VAPIX support, Variable Bit Rate (VBR), Video streaming indicator, Zipstream technology
Software Type: AXIS Fence Guard, AXIS Loitering Guard, AXIS Motion Guard, AXIS Video Motion Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: Bonjour, CDP, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Ports: Audio line-in/microphone - 3.5 mm jack, LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Technical Information
Sensor Pixels Effective (H): 384
Sensor Pixels Effective (V): 288
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 55
Min Focus Distance: 4.3 ft
Image Sensor Type: Uncooled Micro bolometer
Lens Aperture: F/1.18
Min Focal Length: 7 millimetre
Max Frame Rate: 30 frames per second
Focal Length Control: Fixed focal
Video Formats: H.264B, H.264H, H.264M, H.265, MJPEG
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support Features: Two-way audio via edge-to-edge technology
Touchscreen: No
Max Video Resolution: 768 x 576
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Impact / corrosion resistant
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 5.2 inch
Width: 5.2 inch
Depth: 10.7 inch
Weight: 3.09 lbs
Included Items
Included Accessories: Cable gaskets, Connector guard, Drill hole template, Owner authentication key, Terminal block connectors, Torx L-key
