Product Information

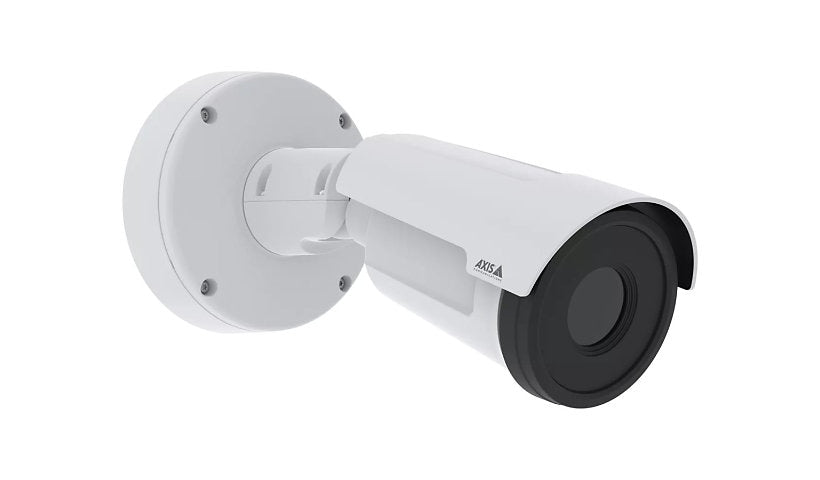

The AXIS Q1971-E (02951-001) is an outdoor thermal bullet with a 384 x 288 uncooled sensor and a 25 mm F/1.0 lens giving a 15 degree view, streaming up to 768 x 576 at 30 fps. It covers 10 temperature detection zones, includes AXIS Fence Guard, Loitering Guard and Motion Guard, offers edge to edge two way audio and 1 alarm in and 1 out, and runs on PoE Class 3 or DC. TAA compliant.
Key Features
- 384 x 288 thermal
- 25 mm, 15 degrees
- 10 temperature zones
- Fence, Loitering Guard
- Edge to edge audio
- PoE, TAA compliant
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS Q19 Series
Model: Q1971-E
Packaged Quantity: 1
Country: Argentina, Australia, Brazil, China, European Union, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Features: 10 temperature zones detection, 180° image rotation, 270° image rotation, 384 x 288 thermal resolution, 8 - 14 µm spectral response, 90° image rotation, Active tampering alarm, Adaptive Bitrate (ABR), Audio Detection, Auto gain control, Axis device ID, Axis Edge Vault, Brightness control, Brute force delay protection, Compression, Contrast control, Corridor mode, Deep learning processing unit (DLPU), Digest authentication, Early warning fire prevention, Electronic image stabilization, Electronic Image Stabilizer (EIS), Exposure control, Half duplex audio, Image mirror, Image overlay, Isothermal palette, Memory card encryption, Multi-Bitrate (MBR), Multiple color palettes, Network speaker pairing, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, Pixel Counter Support, Rotation mode, Scheduled recording, Secure Boot, Secure keystore, Sharpness control, Signed firmware, Signed video, Simplex audio, Spot temperature meter, Text overlay, Thermal sensitivity 20 mK (NETD), TPM 2.0 module, VAPIX support, Variable Bit Rate (VBR), Video streaming indicator
Software Type: AXIS Fence Guard, AXIS Loitering Guard, AXIS Motion Guard, AXIS Video Motion Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: Bonjour, CDP, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Ports: Audio line-in/microphone - 3.5 mm jack, LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (H, Max, Degree): 15
Angular Field of View (V, Max, Degree): 11
Sensor Pixels Effective (H): 384
Sensor Pixels Effective (V): 288
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Motion Detection: Yes
Min Focus Distance: 7.2 inch
Image Sensor Type: Uncooled Micro bolometer
Lens Aperture: F/1.0
Min Focal Length: 25 millimetre
Max Frame Rate: 30 frames per second
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support Features: Two-way audio via edge-to-edge technology
Touchscreen: No
Max Video Resolution: 768 x 576
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Weather resistant / impact resistant
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 5.2 inch
Width: 5.2 inch
Depth: 10.7 inch
Weight: 3.09 lbs
Included Items
Included Accessories: Cable gaskets, Connector guard, Drill hole template, Owner authentication key, Resistorx L-key, Terminal block connectors, Torx L-key
