Product Information

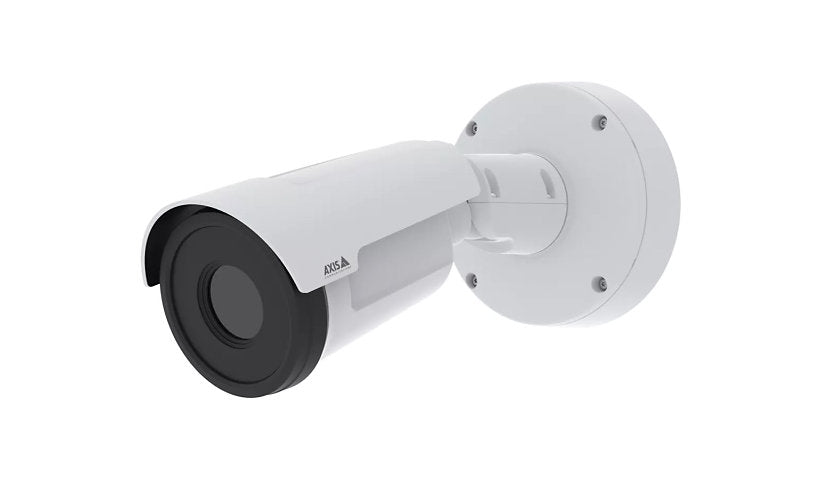

This AXIS Q1972-E (03031-001) is the 25 mm version of the outdoor thermal bullet, with 640 x 480 thermal resolution, an athermalized lens and a narrow 24 degree view for longer range detection. It includes AXIS Fence Guard, Loitering Guard, Motion Guard and Speed Monitor, temperature zones, audio and alarm I/O, on 12 to 28 V DC or PoE Class 3. TAA compliant.
Key Features
- 640 x 480 thermal
- 25 mm, 24 degree view
- Fence and Loitering Guard
- AXIS Speed Monitor
- Audio, alarm I/O
- PoE, TAA compliant
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS Q19 Series
Model: Q1972-E
Packaged Quantity: 1
Country: Argentina, Australia, Brazil, China, European Union, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Encryption: 256-bit AES-XTS-Plain64, Dynamic PSK, MSCHAPv2, PEAP, PKI, TLS 1.2, TLS 1.3
Features: 10 temperature zones detection, 180° image rotation, 270° image rotation, 640 x 480 thermal resolution, 8 - 14 µm spectral response, 90° image rotation, Adaptive Bitrate (ABR), Auto gain control, Axis device ID, Axis Edge Vault, Brightness control, Brute force delay protection, Compression, Contrast control, Corridor mode, Deep learning processing unit (DLPU), Digest authentication, Early warning fire prevention, Electronic image stabilization, Electronic Image Stabilizer (EIS), Exposure control, Half duplex audio, Image mirror, Image overlay, Isothermal palette, Memory card encryption, Multi-Bitrate (MBR), Multiple color palettes, Network speaker pairing, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, Pixel Counter Support, Rotation mode, Scheduled recording, Secure Boot, Secure keystore, Sharpness control, Signed firmware, Signed video, Simplex audio, Spot temperature meter, Text overlay, Thermal Imaging System, Thermal sensitivity 20 mK (NETD), TPM 2.0 module, VAPIX support, Variable Bit Rate (VBR), Video streaming indicator
Software Type: AXIS Fence Guard, AXIS Loitering Guard, AXIS Motion Guard, AXIS Speed Monitor, AXIS Video Motion Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: Bonjour, CDP, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Ports: Audio line-in/microphone - 3.5 mm jack, LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (H, Max, Degree): 24
Focus Modes: Athermalized
Max Focal Length: 25 millimetre
Sensor Pixels Effective (H): 640
Sensor Pixels Effective (V): 480
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Motion Detection: Yes
Min Focus Distance: 61 ft
Image Sensor Type: Uncooled Micro bolometer
Lens Aperture: F/1.0
Digital Video Capture Resolution: 800 x 600
Max Frame Rate: 30 frames per second
Focal Length Control: Fixed focal
Video Formats: AVC, H.264, H.265, HEVC, MJPEG
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support Features: 10-band graphic equalizer, Two-way audio via edge-to-edge technology
Touchscreen: No
Max Video Resolution: 800 x 600
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Weather resistant / impact resistant
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.7 inch
Width: 3.7 inch
Depth: 10.7 inch
Weight: 3.09 lbs
Included Items
Included Accessories: Cable gaskets, Connector guard, Drill hole template, Owner authentication key, Resistorx L-key, Terminal block connectors, Torx L-key
