Product Information

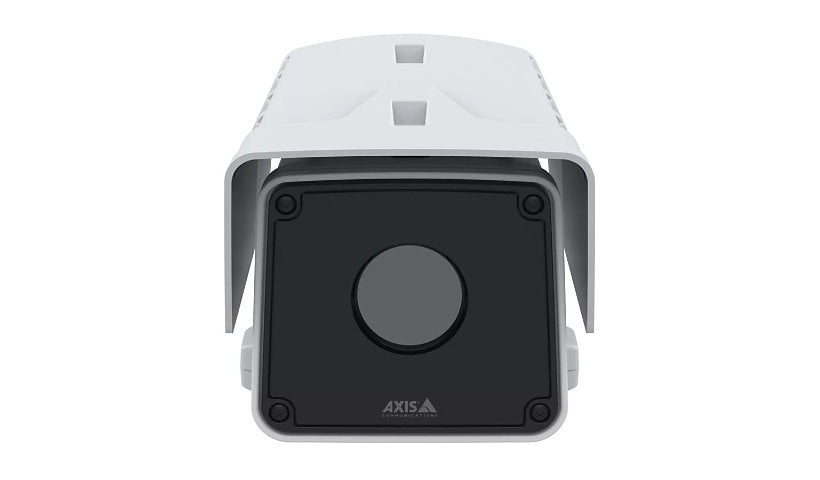

The AXIS Q2112-E (02610-001) is an outdoor thermal bullet with a 640 x 480 uncooled microbolometer, an athermalized 35 mm F/1.2 lens (17 degree view) and streaming up to 800 x 600 at 30 fps. It ships with AXIS Fence Guard, Loitering Guard, Motion Guard and Speed Monitor, offers edge to edge two way audio, two RS-485/RS-422 ports, 4 alarm inputs and 4 outputs, and runs on PoE Class 4 or DC. TAA compliant.
Key Features
- 640 x 480 thermal
- 35 mm, 17 degrees
- Fence, Loitering Guard
- AXIS Speed Monitor
- 4 alarm in, 4 out
- PoE, TAA compliant
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS Q21 Series
Model: Q2112-E
Packaged Quantity: 1
Country: Argentina, Australia, Brazil, China, European Union, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Encryption: 256-bit AES-XTS-Plain64, Dynamic PSK, MSCHAPv2, PEAP, PKI, TLS 1.2, TLS 1.3
Features: 180° image rotation, 24/7 recording, 256 preset positions, 270° image rotation, 640 x 480 thermal resolution, 90° image rotation, Active tampering alarm, Adaptive Bitrate (ABR), Alarm notifications, Aluminum housing, Audio Detection, Automatic Gain Control (AGC), Axis Edge Vault, Bit rate control, Brightness control, Clips notification, Compression, Contrast control, Controllable bandwidth, Controllable frame rate, Corridor mode, Edge Storage, Electronic image stabilization, Exposure control, False alarm reduction, Full duplex audio, Half duplex audio, Image mirror, Image overlay, Level grid, Local contrast control, Manually schedule recording, Multi-Bitrate (MBR), Multiple color palettes, NAS-Ready, Network speaker pairing, Network Time Security (NTS), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, Polygon privacy mask, Privacy Mask Function, PVC Free, Rotation mode, Sharpness control, Spectrum visualizer, Thermal Imaging System, Thermal sensitivity 20 mK (NETD), TPM 2.0 module, Trigger recording, Variable Bit Rate (VBR), Video streaming indicator, Zipstream technology
Software Type: AXIS Fence Guard, AXIS Loitering Guard, AXIS Motion Guard, AXIS Speed Monitor, AXIS Video Motion Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCPv4, DHCPv6, DNS, DNSv6, EAP, FTP, HTTP, HTTP/2, HTTPS, ICMP, ICMPv4, ICMPv6, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MDNS, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP, TLS, UDP, UPnP, USGv6
Ports: 2 x serial RS-485/RS-422 - terminal block, Audio line out - 3.5 mm jack, Audio line-in/microphone - 3.5 mm jack, LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (H, Max, Degree): 17
Focus Modes: Athermalized
Max Focal Length: 35 millimetre
Sensor Pixels Effective (H): 640
Sensor Pixels Effective (V): 480
Alarm Input Quantity: 4
Alarm Output Quantity: 4
Motion Detection: Yes
Min Focus Distance: 108 ft
Image Sensor Type: Uncooled Micro bolometer
Lens Aperture: F/1.2
Digital Video Capture Resolution: 384 x 288, 768 x 576, 800 x 600
Max Frame Rate: 30 frames per second
Video Formats: AVC, H.264, H.265, HEVC, MJPEG
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support Features: 10-band graphic equalizer, Two-way audio via edge-to-edge technology
Touchscreen: No
Max Video Resolution: 800 x 600
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Weather resistant / impact resistant
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Weight: 7.72 lbs
Included Items
Included Accessories: Cable gaskets, Connector guard, Owner authentication key, Terminal block connectors
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
