Product Information

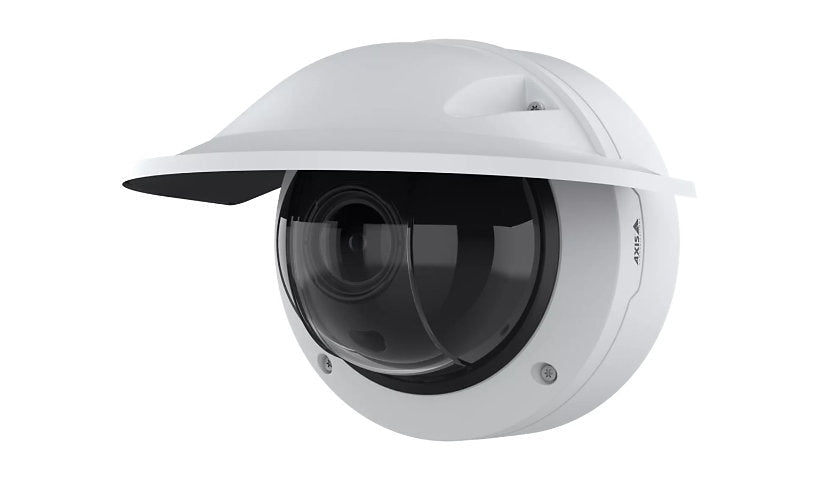

The AXIS Q3546-LVE is a 4 MP outdoor dome recording 2688 x 1512 at up to 120 fps through a very bright 4.7 to 10 mm F1.1 varifocal lens with remote focus. It has 120 dB WDR, IR up to 197 ft and two way audio, and works from -50 C. Vandal, impact and weather resistant, weathershield included. TAA compliant.
Key Features
- 4 MP, up to 120 fps
- 4.7 to 10 mm, F1.1
- IR up to 197 ft
- 120 dB WDR
- Two way audio
- TAA compliant
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS Q35 Series
Model: Q3546-LVE
Packaged Quantity: 1
Color: NCS S 1002-B, White
Color Category: Black, White
Country: Argentina, Australia, Brazil, China, Europe, Japan, Korea, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired
Encryption: EAP-TLS, FIPS 140-2 Level 1, FIPS 140-3 Level 3, PEAP, PKI
Features: >55 dB SNR, 120 dB wide dynamic range, 13m recognize distance (wide), 141m detect distance (tele), 14m identify distance (tele), 16:10 aspect ratio, 16:9 aspect ratio, 180° image rotation, 26m observe distance (wide), 270° image rotation, 28m recognize distance (tele), 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), 4:3 aspect ratio, 56m observe distance (tele), 6.4m identify distance (wide), 65m detect distance (wide), 850nm illuminator, 90° image rotation, Adaptive Bitrate (ABR), AI-powered, Alarm event, Area occupancy, ARTPEC-9 chipset, Automatic Gain Control (AGC), Automatic IR-cut filter, Axis Edge Vault, AXIS Object Analytics, Brightness control, Compression, Contrast control, Control queue, Deep learning processing unit (DLPU), Defog, Digital PTZ function, DORI coverage, Electronic Image Stabilizer (EIS), Exposure control, Forensic WDR, Heater, Level grid, Leveling assistant, License Plate Recognition, Lightfinder 2.0 technology, Line-crossing detection, Low latency mode, Multi-Bitrate (MBR), Network Time Security (NTS), Object in area, Object line crossing counting, On-screen directional indicator, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF support, OptimizedIR, Perspective configuration, Pixel Counter Support, Privacy Mask Function, Remote zoom, Repaintable, Scene metadata, Secure Boot, Sharpness control, Signed OS, Time in area, Tone mapping, Tour recording, Vehicle analytics, Video Motion Detection Technology, Video streaming indicator, White balance, Zipstream technology
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCPv4, DHCPv6, DiffServ, DNS, DNSv6, EAP, FTP, HTTP, HTTPS, ICMP, ICMPv4, ICMPv6, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MDNS, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP, TLS, UDP, UPnP, USGv6, Zeroconf
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (H, Max, Degree): 101.8
Angular Field of View (V, Max, Degree): 54
Focus Modes: Remote
Infrared Distance: 197 ft
Infrared LEDs: Yes
Auto Iris Control: P-Iris
Max Focal Length: 10 millimetre
Optical Zoom: 2.2
Tilt: -42 to +80
Motion Detection: Yes
Panning Range (degree): -180 to +180
Angular Field of View (H, Min, Degree): 44
Angular Field of View (V, Min, Degree): 24.6
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - F1.1 - 50 IRE - infrared LEDs on, 0.01 lux - color - F1.1 - 50 IRE
Total Pixels: 4,000,000 pixels
Image Sensor Size: 1/1.8"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/1.1-1.2
Min Focal Length: 4.7 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1280 x 800, 2016 x 1512, 2688 x 1512
Max Frame Rate: 120 frames per second
Shutter Speed (Max): 1/49500 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Vari-focal
Video Formats: AV1, AVC, H.264, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, LPCM, OPUS, PCM
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 2688 x 1512
Min Operating Temperature: -58 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 100% RH (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal resistant / impact resistant / weather resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 8.3 inch
Width: 9.4 inch
Weight: 5.2 lbs
Included Items
Included Accessories: Cable gaskets, Connector guard, Owner authentication key, Terminal block connectors, Weathershield
