Product Information

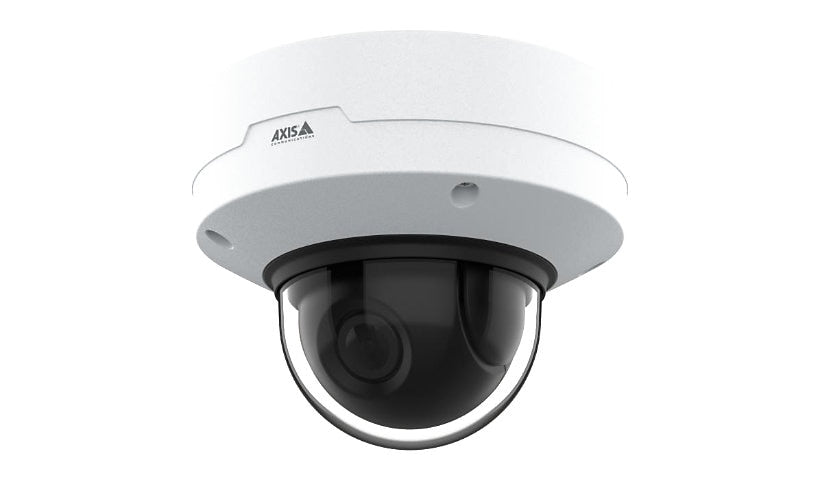

The AXIS Q3626-VE is a 4 MP outdoor dome recording 2688 x 1512 at up to 60 fps with a 4.3 to 8.6 mm motorized lens and remote pan, tilt, roll and zoom for easy aiming. It has electronic image stabilization, deep learning analytics, two way audio and alarm in and out. Vandal and weatherproof, weathershield included.
Key Features
- 4 MP, up to 60 fps
- 4.3 to 8.6 mm, remote PTRZ
- EIS
- Deep learning analytics
- Two way audio, alarm I/O
- Vandal and weatherproof
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS Q36 Series
Model: Q3626-VE
Packaged Quantity: 1
Color: NCS S 1002-B, White
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wired
Encryption: EAP-TLS, FIPS 140-2 Level 2, MSCHAPv2, PEAP, TLS 1.2, TLS 1.3
Features: 16:10 aspect ratio, 16:9 aspect ratio, 180° image rotation, 270° image rotation, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), 4:3 aspect ratio, 90° image rotation, Adaptive Bitrate (ABR), Auto gain control, Axis Edge Vault, AXIS Object Analytics, Barrel distortion correction, Brightness control, Contrast control, Corridor mode, Day/night shift level, Deep learning processing unit (DLPU), Defogging, Digital PTZ function, Dynamic text overlay, Electronic image stabilization, Exposure mode, Exposure zone, Forensic WDR, Full duplex audio, Half duplex audio, Image mirror, Image overlay, Infrared-cut filter, IR Corrected lens, Lightfinder 2.0 technology, Low latency mode, Multi-Bitrate (MBR), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Polygon privacy mask, Remote focus, Remote zoom, Saturation control, Secure Boot, Sharpness control, Signed firmware, Target aperture, Tone mapping, Variable Bit Rate (VBR), Video streaming indicator, White balance, Zipstream technology
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MDNS, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SIP, SMB, SMTP, SNMP, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Ports: Audio line in - 3.5 mm jack, LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (H, Max, Degree): 103
Angular Field of View (V, Max, Degree): 56
Auto Iris Control: P-Iris
Max Focal Length: 8.6 millimetre
Optical Zoom: 2
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Tilt: -8 to +75
Motion Detection: Yes
Panning Range (degree): -190 to +190
Angular Field of View (H, Min, Degree): 52
Angular Field of View (V, Min, Degree): 30
Min Focus Distance: 19.7 inch
Minimum Illumination: 0.0136 lux - B&W - F1.5 - 50 IRE, 0.06 lux - color - F1.5 - 50 IRE
Total Pixels: 4,000,000 pixels
Image Sensor Size: 1/1.8"
Image Sensor Type: PS RGB CMOS
Lens Aperture: F/1.5-2.4
Min Focal Length: 4.3 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1280 x 800, 160 x 100, 160 x 120, 160 x 90, 2016 x 1512, 2688 x 1512
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/91000 second (time unit)
Shutter Speed (Min): 1 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 2688 x 1512
Min Operating Temperature: -58 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal / weatherproof
Form Factor: Dome
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 5.6 inch
Width: 7.2 inch
Depth: 7.2 inch
Weight: 4.63 lbs
Included Items
Included Accessories: Cable gasket, Conduit adapter, Connector guard, Owner authentication key, RESISTORX T20 screw bit, Terminal block connectors, Weathershield
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
