Product Information

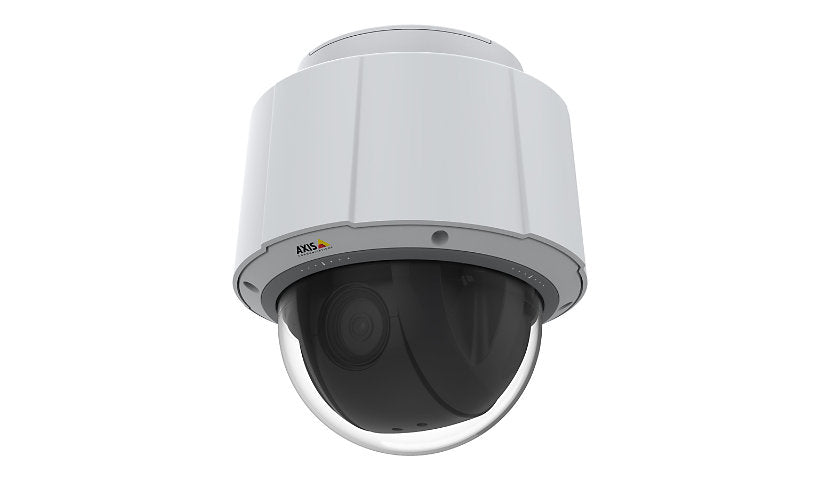

The AXIS Q6075-E 60 Hz (01752-004) is an outdoor 1080p PTZ with a 4.25 to 170 mm lens for 40x optical zoom and pan speeds up to 450 degrees per second. It includes Autotracking 2, AXIS Fence Guard, Loitering Guard and Motion Guard, and ships with an AXIS High PoE midspan (1 port), a sunshield and an RJ45 push pull connector.
Key Features
- 1080p outdoor PTZ
- 40x optical zoom
- Autotracking 2
- Fence, Loitering Guard
- Sunshield included
- High PoE midspan
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS
Model: Q6075-E 60 Hz
Packaged Quantity: 1
Country: United States
Network and Communication
Connectivity Technology: Wired
Features: 3D Privacy Mask Function, Autotracking 2, AXIS Video Hosting System (AVHS), Backlight Compensation (BLC), Brightness control, Color control, Defog, Digital image freeze, E-Flip, Electronic Image Stabilizer (EIS), Infrared cut filter, Lightfinder 2.0 technology, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, Progressive scanning, Sharpness control, TPM 2.0 module, Video Motion Detection Technology, White balance, Wide Dynamic Range (WDR), Zipstream technology
Software Type: AXIS Fence Guard, AXIS Loitering Guard, AXIS Motion Guard
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, QOS, RTCP, RTP, RTSP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power - RJ-45
Power
Power Device Form Factor: External
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
RAM Installed: 1 GB
Flash Memory Installed: 512 megabyte
Technical Information
Angular Field of View (H, Max, Degree): 65.1
Angular Field of View (V, Max, Degree): 39.1
Focus Modes: Automatic
Max Focal Length: 170 millimetre
Optical Zoom: 40
Video Capture: 1920 x 1080
Digital Zoom: 12
Max Panning Speed (degree/sec): 450
Max Tilting Speed (degree/sec): 450
Tilt: 220
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 2
Angular Field of View (V, Min, Degree): 1.18
Camera Iris: Auto iris
Minimum Illumination: 0.002 lux - B&W - F1.6 - 30 IRE, 0.003 lux - B&W - F1.6 - 50 IRE, 0.1 lux - color - F1.6 - 30 IRE, 0.15 lux - color - F1.6 - 50 IRE
Video Modes: 1080p
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-4.95
Min Focal Length: 4.25 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/11000 second (time unit)
Shutter Speed (Min): 1/3 second (time unit)
Video Formats: H.264, MJPEG, MPEG-4
Video Input: Color
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -58 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Physical Characteristics
Indoor/Outdoor: Outdoor
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 10.6 inch
Width: 9.1 inch
Depth: 9.1 inch
Weight: 8.27 lbs
Included Items
Included Accessories: AXIS High PoE Midspan (1 port), RJ45 push-pull connector, Sunshield
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
