Product Information

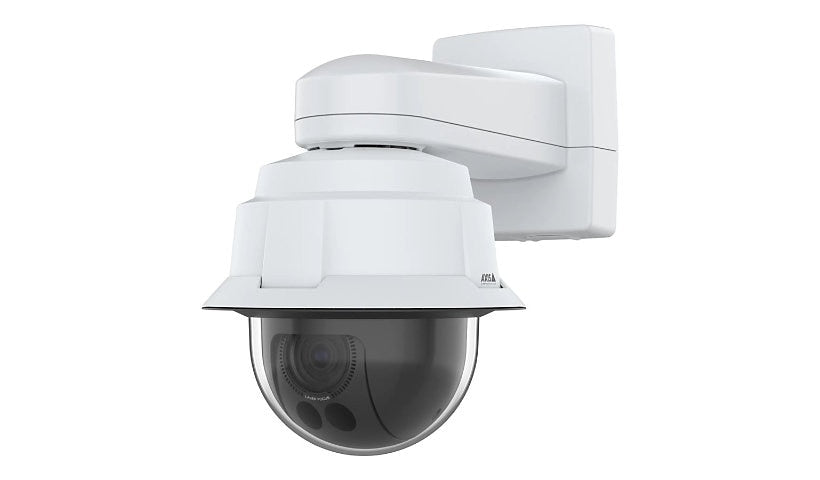

The AXIS Q6086-E is a 4 MP outdoor PTZ dome recording 2688 x 1512 at up to 60 fps with a 6.64 to 225.5 mm lens giving 34x optical zoom and pan and tilt up to 500 degrees per second. It has AXIS Object Analytics, 120 dB dynamic range, 300 presets and two way audio through edge to edge technology, works from -50 to 55 C and runs on PoE. TAA compliant.
Key Features
- 4 MP PTZ up to 60 fps
- 34x optical zoom
- 300 presets
- AXIS Object Analytics
- -50 to 55 C
- PoE, TAA compliant
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS Q60 Series
Model: Q6086-E
Packaged Quantity: 1
Country: United States
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-3, TLS 1.2, TLS 1.3
Features: 100 individual polygon and mosaic privacy masks, 120 dB dynamic range, 20 video streams, 2D digital noise reduction (DNR), 2D Noise Reduction Technology, 300 preset positions, 3D digital noise reduction (DNR), 3D Noise Reduction Technology, Adaptive Bitrate (ABR), Adjustable zoom speed, Aluminum/polycarbonate housing, ARTPEC-9 chipset, Auto ICR, Auto tracking, Automatic IR-cut filter, Axis Edge Vault, AXIS Object Analytics, Brightness control, Compression, Contrast control, Control queue, Day/night threshold, Deep learning processing unit (DLPU), Defog, DORI coverage, Exposure control, Forensic WDR, Guard tour, Image overlay, Laser focus, Level grid, Lightfinder 2.0 technology, Local contrast control, Lock aperture, Low latency mode, Multi-Bitrate (MBR), Nadir flip, NAS-Ready, Network Time Security (NTS), Object analytics, On-screen directional indicator, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Orientation aid PTZ, People Counter, Pixel Counter Support, Privacy Mask Function, Progressive scanning, Saturation control, Scene metadata, Set new pan 0°, Sharpness control, Speaker pairing, Target aperture, Text overlay, Tone mapping, Tour recording, Variable Bit Rate (VBR), Video Motion Detection (VMD), Video streaming indicator, White balance, Wide Dynamic Range (WDR), Zipstream technology
Software Type: AXIS Image Health Analytics, AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCPv4, DHCPv6, DNS, DNSv6, FTP, HTTP, HTTPS, ICMP, ICMPv4, ICMPv6, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MDNS, MQTT, NTCIP, NTP, NTS, PTP, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP, TLS, UDP, UPnP, USGv6, Zeroconf
Ports: LAN/power - RJ-45
Power
Power Device Form Factor: External
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (H, Max, Degree): 61.5
Angular Field of View (V, Max, Degree): 37.3
Focus Modes: Automatic
Auto Iris Control: P-Iris
Max Focal Length: 225.5 millimetre
Optical Zoom: 34
Digital Zoom: 12
Max Panning Speed (degree/sec): 500
Max Tilting Speed (degree/sec): 500
Tilt: 0 to -90
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 2
Angular Field of View (V, Min, Degree): 1.1
Min Focus Distance: 10 ft
Minimum Illumination: 0.009 lux - B&W - F1.7 - 50 IRE, 0.07 lux - color - F1.7 - 30 IRE, 0.1 lux - color - F1.7 - 50 IRE
Total Pixels: 4,000,000 pixels
Image Sensor Size: 1/2"
Image Sensor Type: RGB CMOS
Lens Aperture: F/1.7-5.1
Min Focal Length: 6.64 millimetre
Sensor Size (metric): 12.7 mm (1/2")
Digital Video Capture Resolution: 2688 x 1512, 640 x 360
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/2 second (time unit)
Shutter Speed (Min): 1/49500 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: AV1, AVC, H.264, H.265, HEVC, MPEG-4, MPEG-H
Video Input: Color
Audio Support: Yes
Audio Support Features: Speaker pairing, Two-way audio via edge-to-edge technology
Touchscreen: No
Max Video Resolution: 2688 x 1512
Min Operating Temperature: -58 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dustproof / weatherproof / vandal-proof
Form Factor: Dome
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 11 inch
Width: 10.4 inch
Depth: 10.4 inch
Weight: 9.04 lbs
Included Items
Included Accessories: IP66-rated network connector, Owner authentication key, Power cable, Weathershield
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
