Product Information

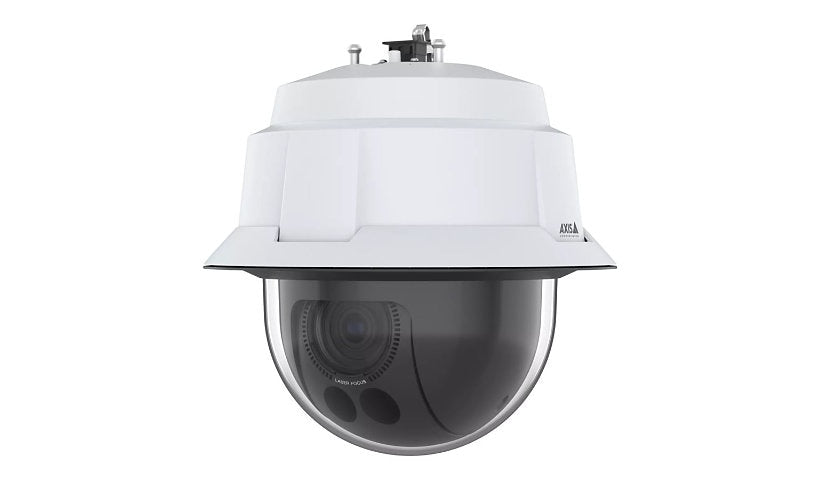

The AXIS Q6088-E is a 4K outdoor PTZ dome recording at up to 60 fps with a 6.64 to 225.5 mm lens giving 34x optical zoom and pan and tilt up to 500 degrees per second. It has AXIS Object Analytics, 120 dB dynamic range, 300 presets and two way audio through edge to edge technology, on High PoE, from -50 to 55 C. Weathershield included. TAA compliant.
Key Features
- 4K PTZ up to 60 fps
- 34x optical zoom
- 300 presets
- AXIS Object Analytics
- -50 to 55 C
- High PoE, TAA
Product Information
Brand: Axis
Manufacturer: Axis Communications
Product Line: AXIS Q60 Series
Model: Q6088-E
Packaged Quantity: 1
Country: United States
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-3, TLS 1.2, TLS 1.3
Features: 100 individual polygon and mosaic privacy masks, 120 dB dynamic range, 20 video streams, 2D digital noise reduction (DNR), 300 preset positions, 3D digital noise reduction (DNR), Adaptive Bitrate (ABR), Adjustable zoom speed, Aluminum/polycarbonate housing, ARTPEC-9 chipset, Auto ICR, Auto tracking, Axis Edge Vault, AXIS Object Analytics, Brightness control, Compression, Contrast control, Control queue, Day/night threshold, Deep learning processing unit (DLPU), Defog, DORI coverage, Exposure control, Forensic WDR, Guard tour, Image overlay, Laser focus, Level grid, Lightfinder 2.0 technology, Local contrast control, Lock aperture, Low latency mode, Multi-Bitrate (MBR), Nadir flip, NAS-Ready, Network Time Security (NTS), On-screen directional indicator, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Orientation aid PTZ, Pixel Counter Support, Progressive scanning, Saturation control, Set new pan 0°, Sharpness control, Target aperture, Text overlay, Tone mapping, Tour recording, Variable Bit Rate (VBR), Video streaming indicator, White balance, Zipstream technology
Software Type: AXIS Image Health Analytics, AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, CDP, CIFS, DDNS, DHCPv4, DHCPv6, DNS, DNSv6, FTP, HTTP, HTTPS, ICMP, ICMPv4, ICMPv6, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MDNS, MQTT, NTCIP, NTP, NTS, PTP, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP, TLS, UDP, UPnP, USGv6, Zeroconf
Ports: LAN/power - RJ-45
Power
Power Device Form Factor: External
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (H, Max, Degree): 60.8
Angular Field of View (V, Max, Degree): 36.5
Focus Modes: Automatic
Auto Iris Control: P-Iris
Max Focal Length: 225.5 millimetre
Optical Zoom: 34
Digital Zoom: 12
Max Panning Speed (degree/sec): 500
Max Tilting Speed (degree/sec): 500
Tilt: 0 to -90
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 2
Angular Field of View (V, Min, Degree): 1.1
Min Focus Distance: 10 ft
Minimum Illumination: 0.01 lux - B&W - F1.7 - 50 IRE, 0.08 lux - B&W - F1.7 - 30 IRE, 0.2 lux - color - F1.7 - 30 IRE, 0.3 lux - color - F1.7 - 50 IRE
Video Modes: 2160p, 4K
Image Sensor Size: 1/2"
Image Sensor Type: RGB CMOS
Lens Aperture: F/1.7-5.1
Min Focal Length: 6.64 millimetre
Sensor Size (metric): 12.7 mm (1/2")
Digital Video Capture Resolution: 3840 x 2160, 640 x 360
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/59000 second (time unit)
Shutter Speed (Min): 1/2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: AV1, AVC, H.264, H.265, HEVC, MJPEG, MPEG-4, MPEG-H
Video Input: Color
Audio Support: Yes
Audio Support Features: Speaker pairing, Two-way audio via edge-to-edge technology
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -58 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 100% RH (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dustproof / weatherproof / vandal-proof
Form Factor: Dome
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 11 inch
Width: 10.4 inch
Depth: 10.4 inch
Weight: 9.04 lbs
Included Items
Included Accessories: IP66-rated network connector, Owner authentication key, Power cable, Weathershield
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
